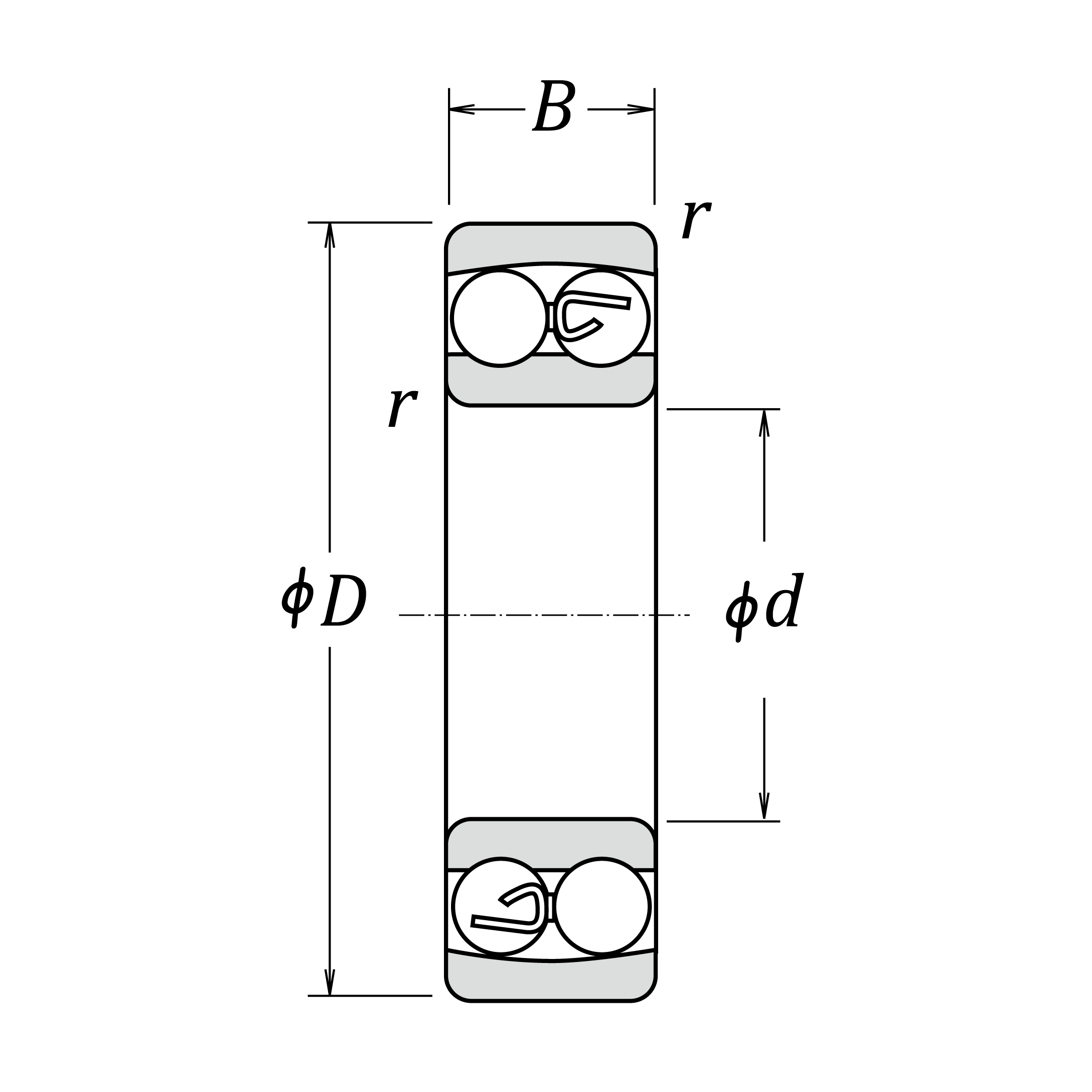

Self-Aligning Ball Bearings

1206

Images shown are representations. Designs and specifications may differ from actual products.

Grouped product items
Parts Number
1206
1206C3

Display units Metric Imperial

1206

Cr	17300	N	Basic dynamic load rating
C0r	4650	N	Basic static load rating

Grease	10000	min-1	Grease lubrication
Oil (Oil-bath)	12000	min-1	Oil-bath lubrication

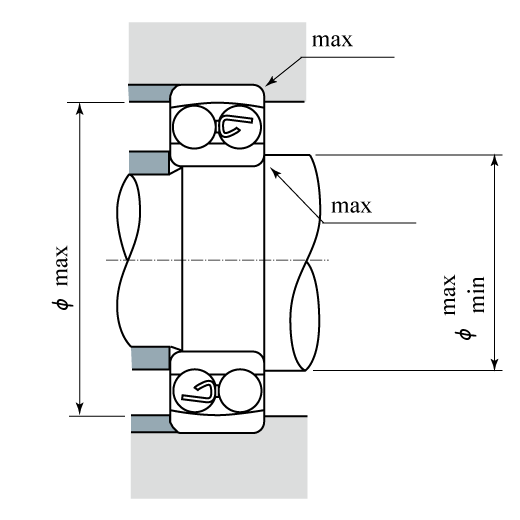

da (min.)	35	mm	Diameter of shaft abutment
Da (max.)	57	mm	Diameter of housing abutment
ra (max.)	1	mm	Radius of shaft or housing fillet

Mass approx.

0.22

Mass approx.

CAD

Customer Questions

How do self-aligning ball bearings differ from spherical (self-aligning) roller bearings?

Self-aligning ball bearings suit light loads with high-speed rotation, while spherical roller bearings suit heavy loads with low-speed rotation.

What greases are recommended for self-aligning ball bearings?

The recommended grease for self-aligning ball bearings depends on usage conditions.

You can use the selection criteria for finding suitable grease for deep groove ball bearings with self-aligning ball bearings as well.

Can I use self-aligning ball bearings with thrust loads?

Because they have small contact angles, self-aligning ball bearings have extremely limited capacity for thrust loads.

Please consider using thrust bearings with aligning seats if thrust loads are expected.

More Information
NSK Product Type2	SABB_SA
NSK Product Type	Bearing
