23076CAME4

Spherical Roller Bearings

23076CAME4

Spherical Roller Bearings

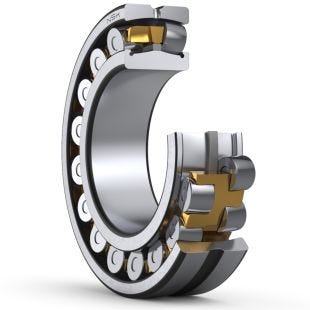

main product photo
Images shown are representations. Designs and specifications may differ from actual products.
Grouped product items
Parts Number
23076CAME4
23076CAME4C3
23076CAME4C2
23076CAME4C4
23076CAME4C5
Display units

Designations

23076CAME4

Boundary Dimensions

d 380 mm Bore diameter
D 560 mm Outside diameter
B 135 mm Width
r (min.) 5 mm Chamfer dimension

Basic Load Ratings

Cr 3150000 N Basic dynamic load rating
C0r 5100000 N Basic static load rating

Speeds

Thermal Speed Rating (Oil-bath) 850 min-1 Oil-bath lubrication subject to conditions outlined in ISO 15312
Mechanical (forced-circulation oil) 1400 min-1 Properly designed and controlled forced-circulation oil lubrication
Grease 530 min-1 Grease lubrication
Oil (Oil-bath) 630 min-1 Oil-bath lubrication

Abutment and Fillet Dimensions

da (min.) 402 mm Diameter of shaft abutment
Da (min.) 506 mm Diameter of housing abutment
Da (max.) 538 mm Diameter of housing abutment
ra (max.) 4 mm Radius of shaft or housing fillet

Calculation factors

e 0.22 Constant
Y2 4.5 Axial load Factors
Y3 3 Axial load Factors
Y0 3 Axial load Factors

Mass

Mass approx. 113 kg Mass approx.
CAD
Designations Boundary Dimensions Basic Load Ratings Radial Internal Clearance Tolerance Class Speeds Mass
Limiting Speeds
d
(mm)		 D
(mm)		 B
(mm)		 Cr
(N)		 C0r
(N)		 min
 max
 Thermal Speed Rating (Oil-bath)
(min-1)		 Mechanical (forced-circulation oil)
(min-1)		 Grease
(min-1)		 Oil (Oil-bath)
(min-1)		 (kg)
23076CAME4 380 560 135 3150000 5100000 850 1400 530 630 113

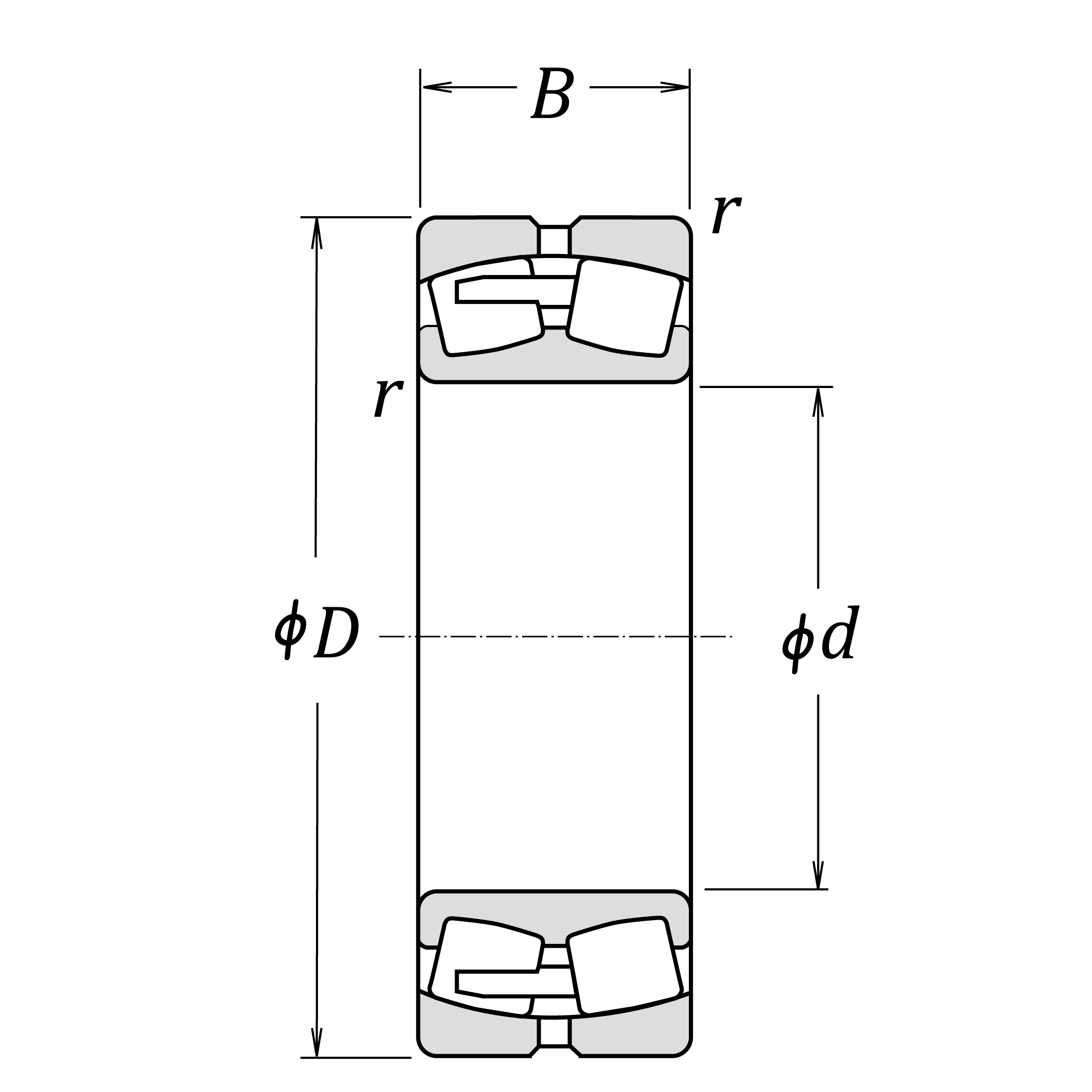

Not to scale.
(*) The chamfer dimensions are minimum values.
Suffix K and K30 represents bearings with tapered bores (taper 1:12 or 1:30).

More Information
NSK Product Type2 SRB_CTB
NSK Product Type Bearing
