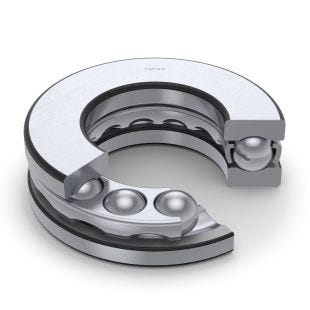

Single-Direction Thrust Ball Bearings

51202

Images shown are representations. Designs and specifications may differ from actual products.

Grouped product items
Parts Number
51202

Display units Metric Imperial

51202

Ca	16700	N	Basic dynamic load rating
C0a	24800	N	Basic static load rating

Grease	5000	min-1	Grease lubrication
Oil (Oil-bath)	7500	min-1	Oil-bath lubrication

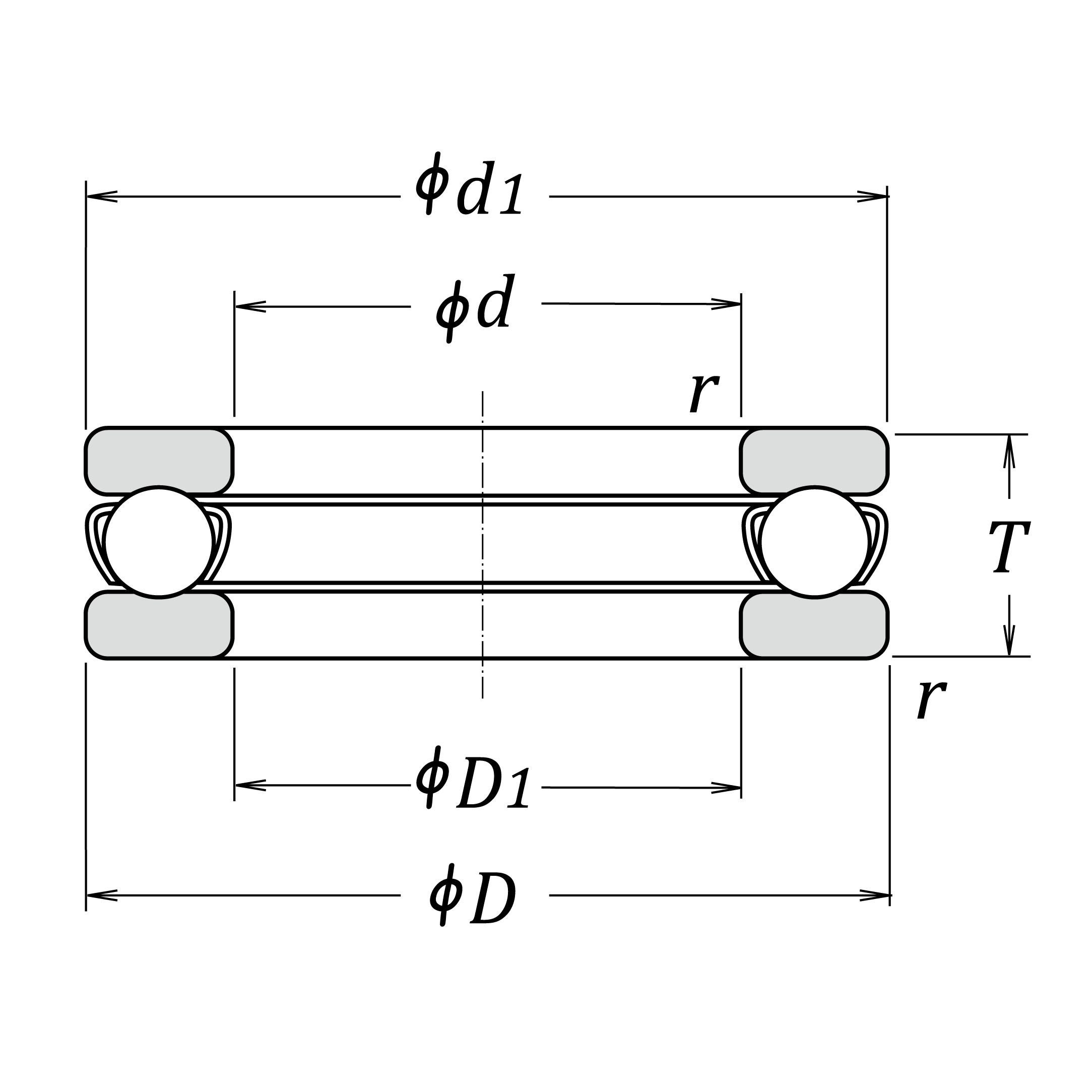

d1	32	mm	Outside diameter shaft washer
D1	17	mm	Inner diameter housing washer

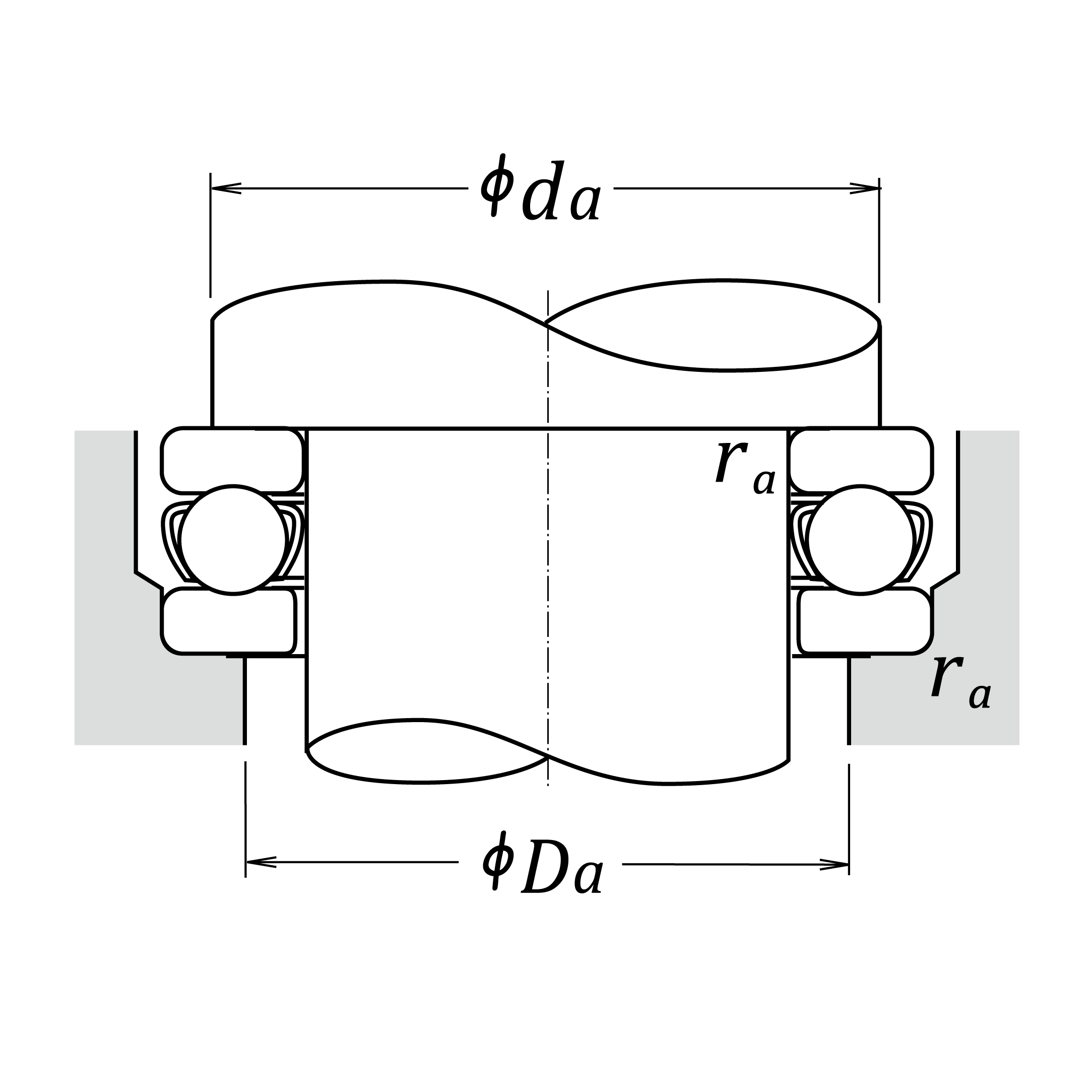

da (min.)	25	mm	Diameter of shaft abutment (min)
Da (max.)	22	mm	Diameter of housing abutment
ra (max.)	0.6	mm	Radius of shaft or housing fillet

Mass approx.

0.043

Mass approx.

CAD

Customer Questions

How are axial load and thrust load different?

Axial load and thrust load are different words for the same concept: They both refer to loads parallel to the axis of the shaft.

Can thrust ball bearings take radial loads?

No, thrust ball bearings cannot take radial loads.
