60/500 Series

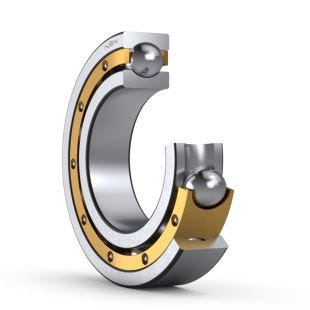

Single-Row Deep Groove Ball Bearings

Skip to the beginning of the images gallery

Images shown are representations. Designs and specifications may differ from actual products.

Radial Internal Clearance

Tolerance

Grouped product items
Parts Number
60/500MC3 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
60/500M Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
60/500MC2 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
60/500MC2P5 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
60/500MC2P6 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
60/500MC3P5 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
60/500MC3P6 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
60/500MC4 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
60/500MC4P5 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
60/500MC4P6 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
60/500MC5 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
60/500MC5P5 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
60/500MC5P6 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
60/500MP5 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
60/500MP6 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.

Product Information

Display units Metric Imperial

Designations

60/500

Boundary Dimensions

d	500	mm	Bore diameter
D	720	mm	Outside diameter
B	100	mm	Width
r (min.)	6	mm	Chamfer dimension

Basic Load Ratings

C_r	690000	N	Basic dynamic load rating
C_0r	1170000	N	Basic static load rating

Speeds

Grease	670	min^-1	Grease lubrication
Oil (Oil-bath)	800	min^-1	Oil-bath lubrication

Abutment and Fillet Dimensions

da (min.)	526	mm	Diameter of shaft abutment
Da (max.)	694	mm	Diameter of housing abutment
ra (max.)	5	mm	Radius of shaft or housing fillet

Calculation factors

Factor

Additional information

z	15		Number of Balls
Dw	69.85	mm	Ball Diameter

Mass

(approx.)

131

Drawing for Reference

Designations	Basic Load Ratings		Radial Internal Clearance			Tolerance Class	Limiting Speeds		Number of Balls	Ball Diameter		Mass
Designations	C_r (N)	C_0r (N)		min	max	Tolerance Class	Grease (min^-1)	Oil (Oil-bath) (min^-1)	Number of Balls	(mm)	(inch)	(approx.) (kg)
60/500	690000	1170000					670	800	15	69.85	2.75	131

You can use this service by registering as a member.

Not to scale.
(*) The chamfer dimensions are minimum values.
6000N, 6000NR, 6001N, 6001NR : Snap ring groove dimensions and snap ring dimensions are not based on ISO 15.

CAD

FAQs (3)

Customer Questions

What are radial loads and axial loads?

Loads are defined by their direction. Loads perpendicular to the shaft are called radial loads and loads parallel to the shaft are called axial (thrust) loads.

How do deep groove ball bearings (DGBBs) differ from single-row angular contact ball bearings?

While DGBBs can handle axial loads in both directions, single-row angular contact ball bearings can only receive axial load in one direction.

What are the differences between open, sealed, and shielded deep groove ball bearings?

Seals and shields offer additional protection for bearing components and help to improve and maintain lubrication. In terms of sealing performance, sealed bearings rank best, followed by shielded bearings, then finally open bearings.
NSK uses supplementary designations D, DU, DW, and V (DD, DDU, DDW, VV) for sealed bearings and Z (ZZ) for shielded bearings. No supplementary designations are listed for open bearings.

More Information

More Information
NSK Product Type2	DGBB_SR
NSK Product Type	Bearing
Designations	60/500
