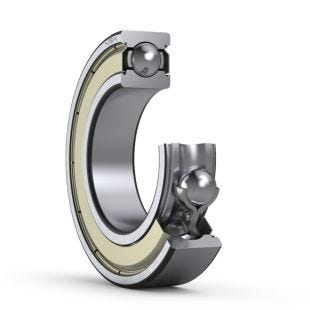

6201ZZ Series

Single-Row Deep Groove Ball Bearings

Skip to the beginning of the images gallery

Images shown are representations. Designs and specifications may differ from actual products.

Radial Internal Clearance

Tolerance

Grouped product items
Parts Number
6201ZZC3 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6201ZZCM Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6201ZZ Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6201ZZC2 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6201ZZC2P5 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6201ZZC2P6 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6201ZZC3P5 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6201ZZC3P6 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6201ZZC4 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6201ZZC4P5 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6201ZZC4P6 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6201ZZC5 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6201ZZC5P5 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6201ZZC5P6 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6201ZZCMP5 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6201ZZCMP6 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6201ZZP5 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6201ZZP6 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.

Product Information

Display units Metric Imperial

Designations

6201ZZ

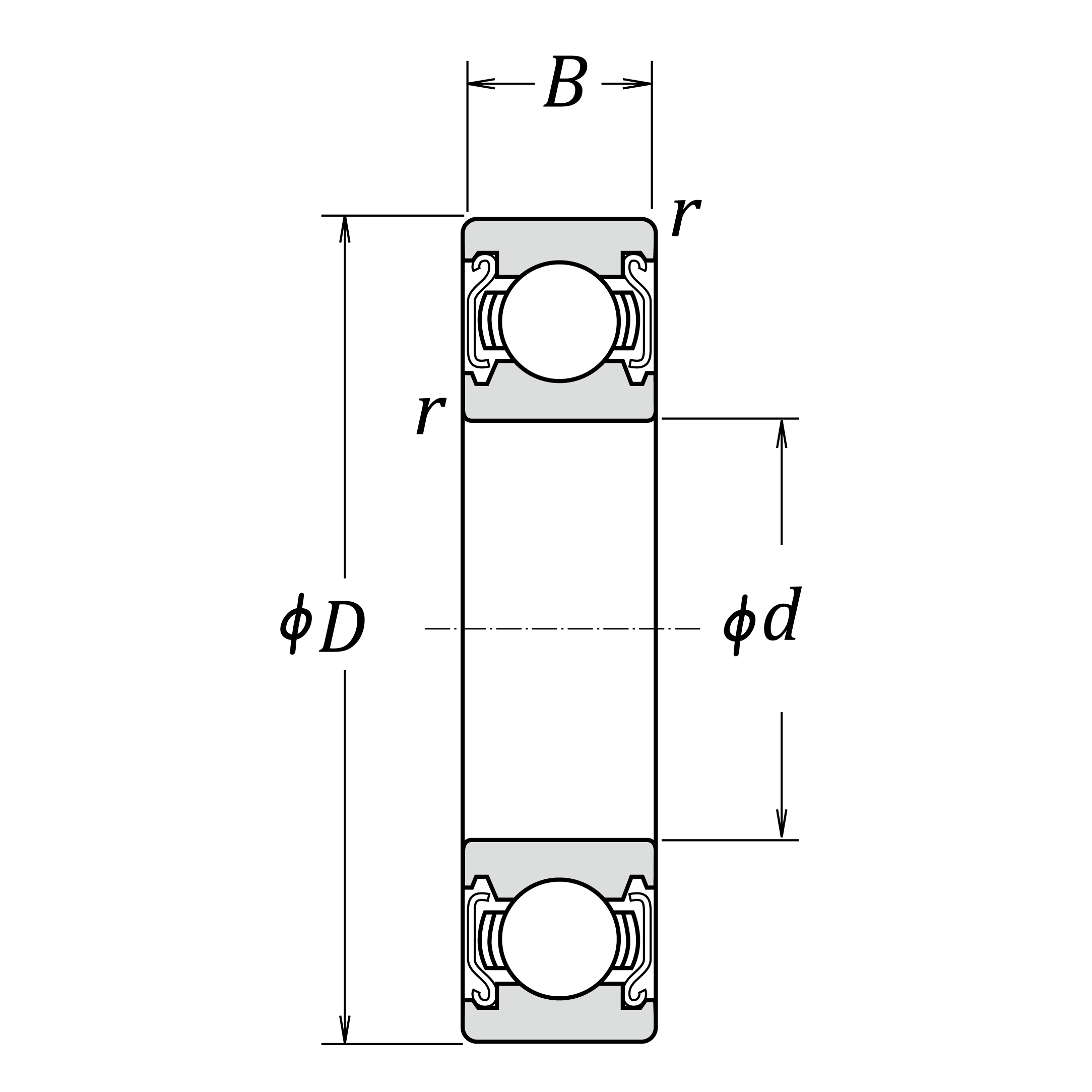

Boundary Dimensions

d	12	mm	Bore diameter
D	32	mm	Outside diameter
B	10	mm	Width
r (min.)	0.6	mm	Chamfer dimension

Basic Load Ratings

C_r	7500	N	Basic dynamic load rating
C_0r	3050	N	Basic static load rating

Speeds

Grease

26000

min^-1

Grease lubrication

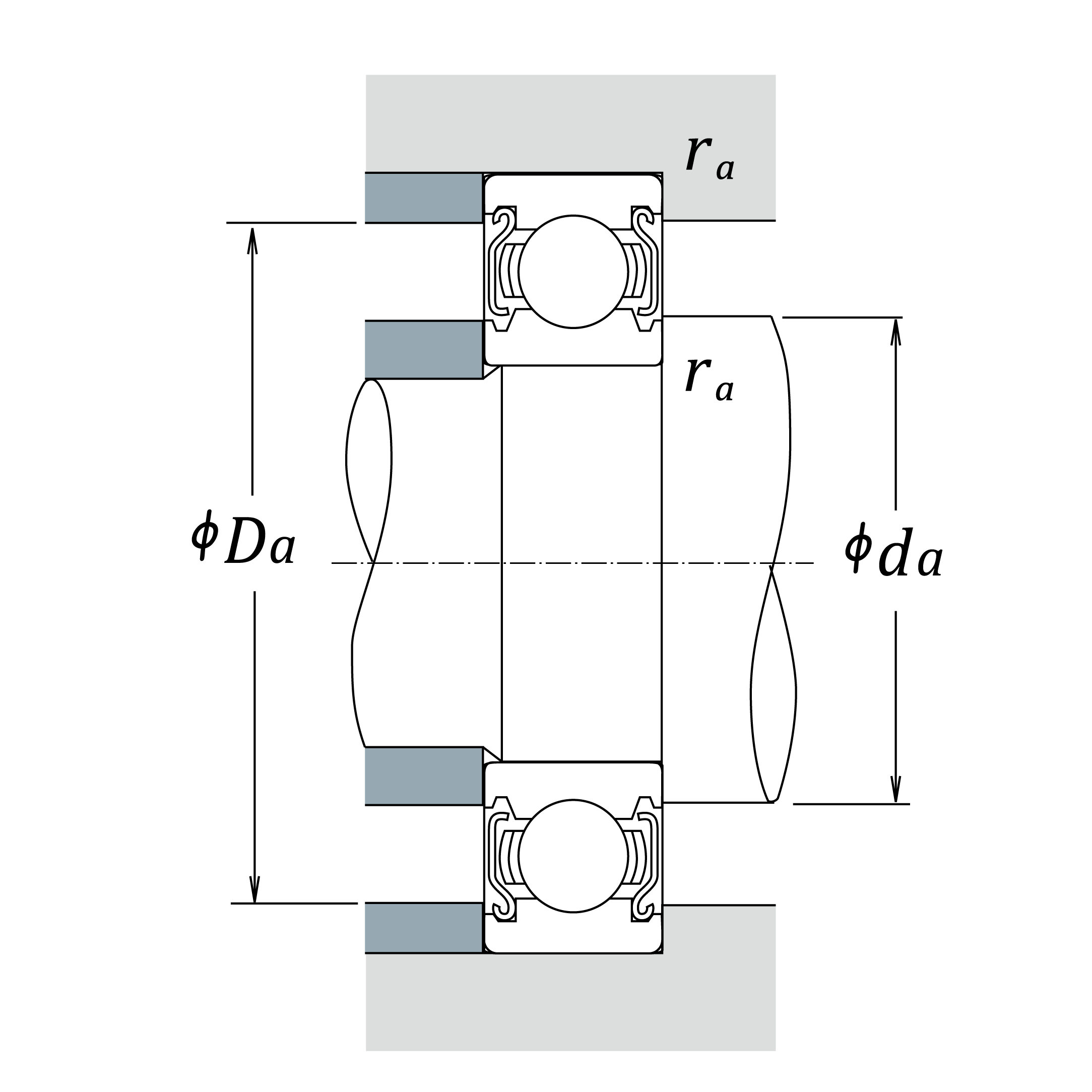

Abutment and Fillet Dimensions

da (min.)	16	mm	Diameter of shaft abutment
da (max.)	17	mm	Diameter of shaft abutment
Da (max.)	28	mm	Diameter of housing abutment
ra (max.)	0.6	mm	Radius of shaft or housing fillet

Calculation factors

12.3

Factor

Additional information

z	7		Number of Balls
Dw	5.953	mm	Ball Diameter

Mass

(approx.)

0.037

Drawing for Reference

Designations	Basic Load Ratings		Radial Internal Clearance			Tolerance Class	Limiting Speeds		Number of Balls	Ball Diameter		Mass
Designations	C_r (N)	C_0r (N)		min	max	Tolerance Class	Grease (min^-1)	Oil (Oil-bath) (min^-1)	Number of Balls	(mm)	(inch)	(approx.) (kg)
6201ZZ	7500	3050					26000		7	5.953	0.234	0.037

You can use this service by registering as a member.

Not to scale.
(*) The chamfer dimensions are minimum values.
6000N, 6000NR, 6001N, 6001NR : Snap ring groove dimensions and snap ring dimensions are not based on ISO 15.

CAD

FAQs (3)

Customer Questions

What are radial loads and axial loads?

Loads are defined by their direction. Loads perpendicular to the shaft are called radial loads and loads parallel to the shaft are called axial (thrust) loads.

How do deep groove ball bearings (DGBBs) differ from single-row angular contact ball bearings?

While DGBBs can handle axial loads in both directions, single-row angular contact ball bearings can only receive axial load in one direction.

What are the differences between open, sealed, and shielded deep groove ball bearings?

Seals and shields offer additional protection for bearing components and help to improve and maintain lubrication. In terms of sealing performance, sealed bearings rank best, followed by shielded bearings, then finally open bearings.
NSK uses supplementary designations D, DU, DW, and V (DD, DDU, DDW, VV) for sealed bearings and Z (ZZ) for shielded bearings. No supplementary designations are listed for open bearings.
