6319 Series

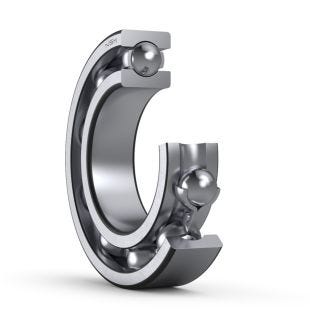

Single-Row Deep Groove Ball Bearings

Skip to the beginning of the images gallery

Images shown are representations. Designs and specifications may differ from actual products.

Radial Internal Clearance

Tolerance

Grouped product items
Parts Number
6319C3 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6319CM Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6319 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6319C2 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6319C2P5 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6319C2P6 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6319C3P5 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6319C3P6 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6319C4 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6319C4P5 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6319C4P6 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6319C5 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6319C5P5 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6319C5P6 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6319CMP5 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6319CMP6 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6319P5 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.
6319P6 Single-Row Deep Groove Ball Bearings			Add to Compare You can use this service by registering as a member.

Product Information

Display units Metric Imperial

Designations

6319

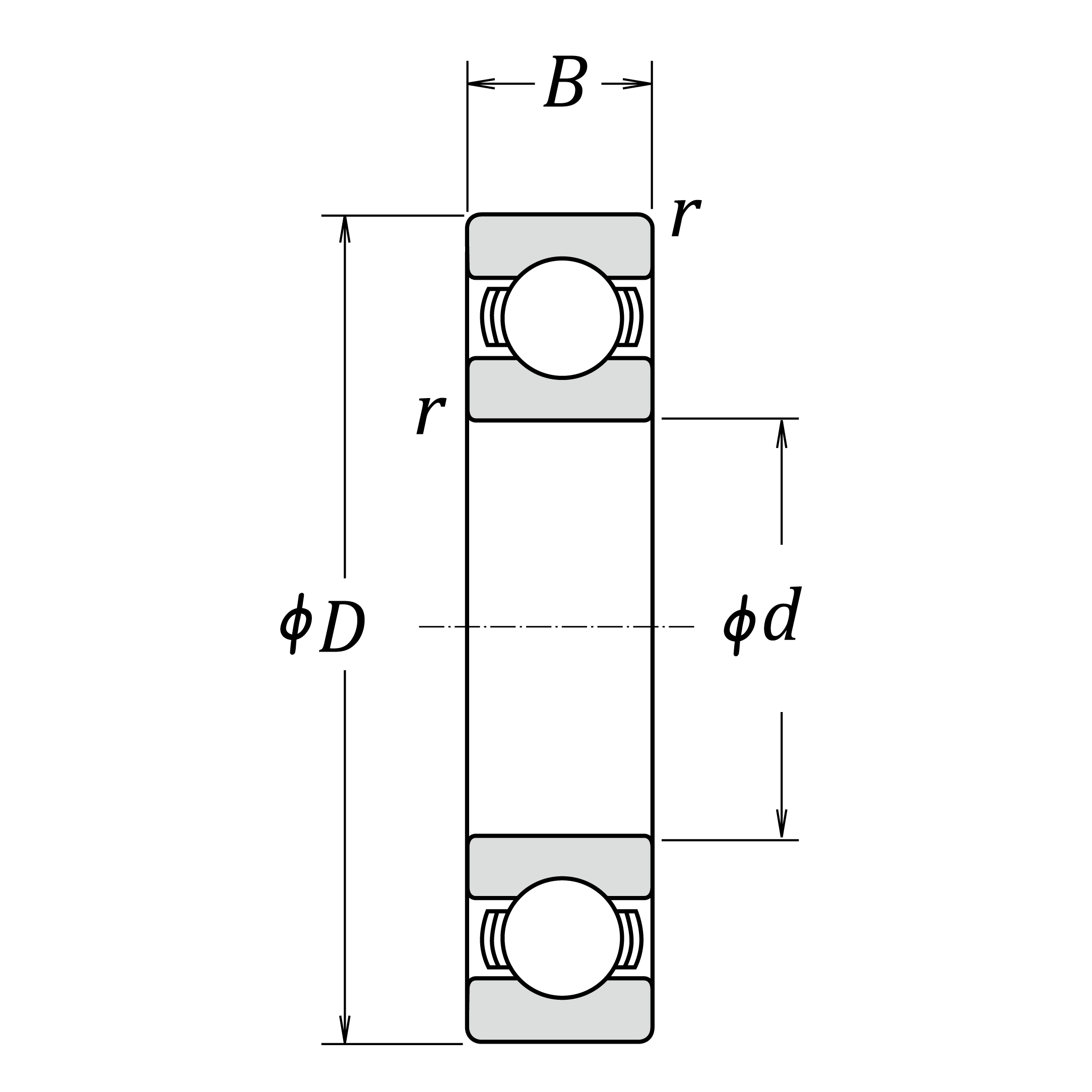

Boundary Dimensions

d	95	mm	Bore diameter
D	200	mm	Outside diameter
B	45	mm	Width
r (min.)	3	mm	Chamfer dimension

Basic Load Ratings

C_r	168000	N	Basic dynamic load rating
C_0r	119000	N	Basic static load rating

Speeds

Grease	3400	min^-1	Grease lubrication
Oil (Oil-bath)	4300	min^-1	Oil-bath lubrication

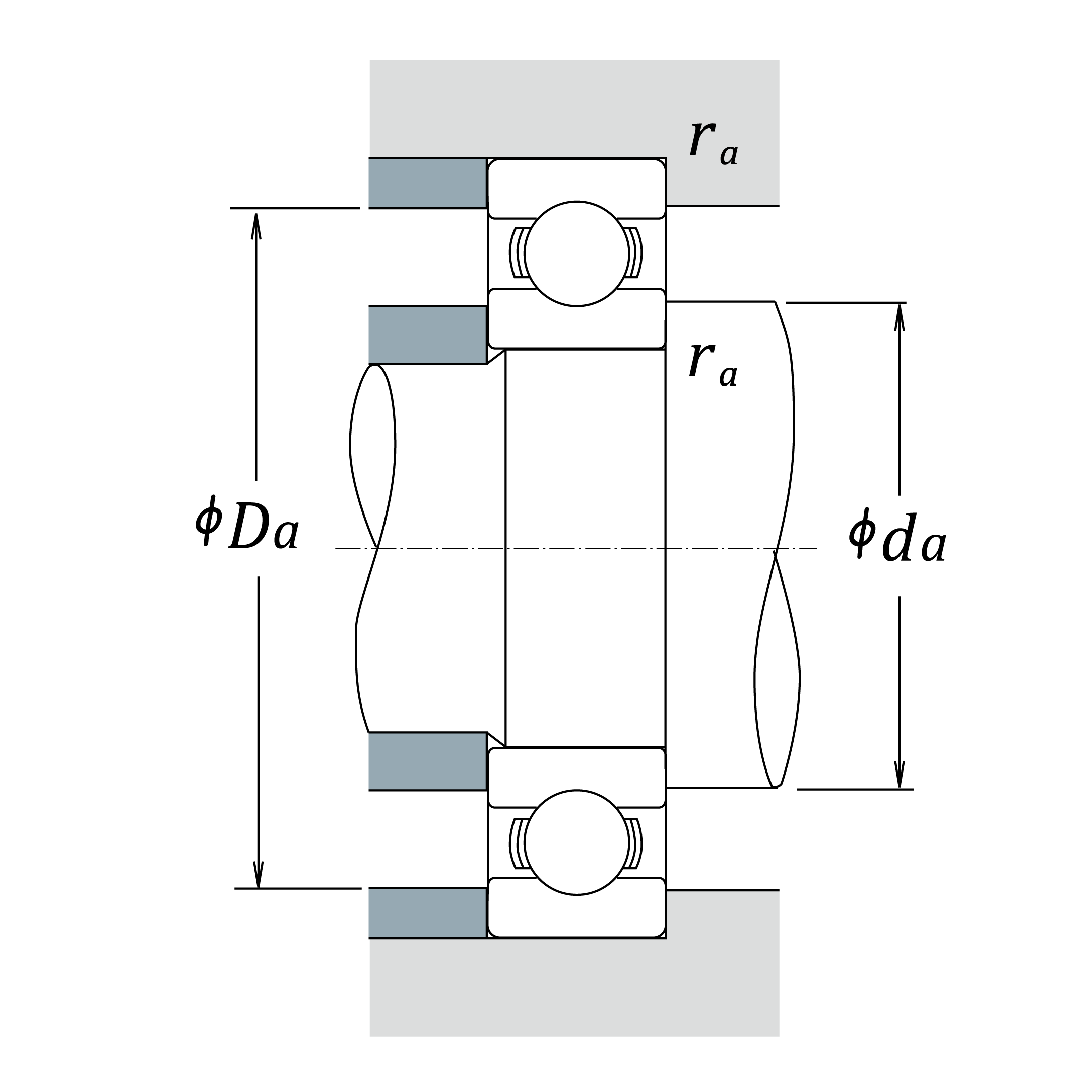

Abutment and Fillet Dimensions

da (min.)	108	mm	Diameter of shaft abutment
da (max.)	123.5	mm	Diameter of shaft abutment
Da (max.)	187	mm	Diameter of housing abutment
ra (max.)	2.5	mm	Radius of shaft or housing fillet

Calculation factors

13.3

Factor

Additional information

z	8		Number of Balls
Dw	33.338	mm	Ball Diameter

Mass

(approx.)

5.76

Drawing for Reference

Designations	Basic Load Ratings		Radial Internal Clearance			Tolerance Class	Limiting Speeds		Number of Balls	Ball Diameter		Mass
Designations	C_r (N)	C_0r (N)		min	max	Tolerance Class	Grease (min^-1)	Oil (Oil-bath) (min^-1)	Number of Balls	(mm)	(inch)	(approx.) (kg)
6319	168000	119000					3400	4300	8	33.338	1.313	5.76

You can use this service by registering as a member.

Not to scale.
(*) The chamfer dimensions are minimum values.
6000N, 6000NR, 6001N, 6001NR : Snap ring groove dimensions and snap ring dimensions are not based on ISO 15.

CAD

FAQs (3)

Customer Questions

What are radial loads and axial loads?

Loads are defined by their direction. Loads perpendicular to the shaft are called radial loads and loads parallel to the shaft are called axial (thrust) loads.

How do deep groove ball bearings (DGBBs) differ from single-row angular contact ball bearings?

While DGBBs can handle axial loads in both directions, single-row angular contact ball bearings can only receive axial load in one direction.

What are the differences between open, sealed, and shielded deep groove ball bearings?

Seals and shields offer additional protection for bearing components and help to improve and maintain lubrication. In terms of sealing performance, sealed bearings rank best, followed by shielded bearings, then finally open bearings.
NSK uses supplementary designations D, DU, DW, and V (DD, DDU, DDW, VV) for sealed bearings and Z (ZZ) for shielded bearings. No supplementary designations are listed for open bearings.

More Information

More Information
NSK Product Type2	DGBB_SR
NSK Product Type	Bearing
Designations	6319
