65TMP93

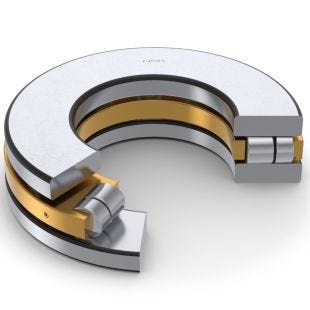

Thrust Cylindrical Roller Bearings

65TMP93

Thrust Cylindrical Roller Bearings

Skip to the beginning of the images gallery

Images shown are representations. Designs and specifications may differ from actual products.

Parts Number
65TMP93

Product Information

Display units Metric Imperial

Parts Number

65TMP93

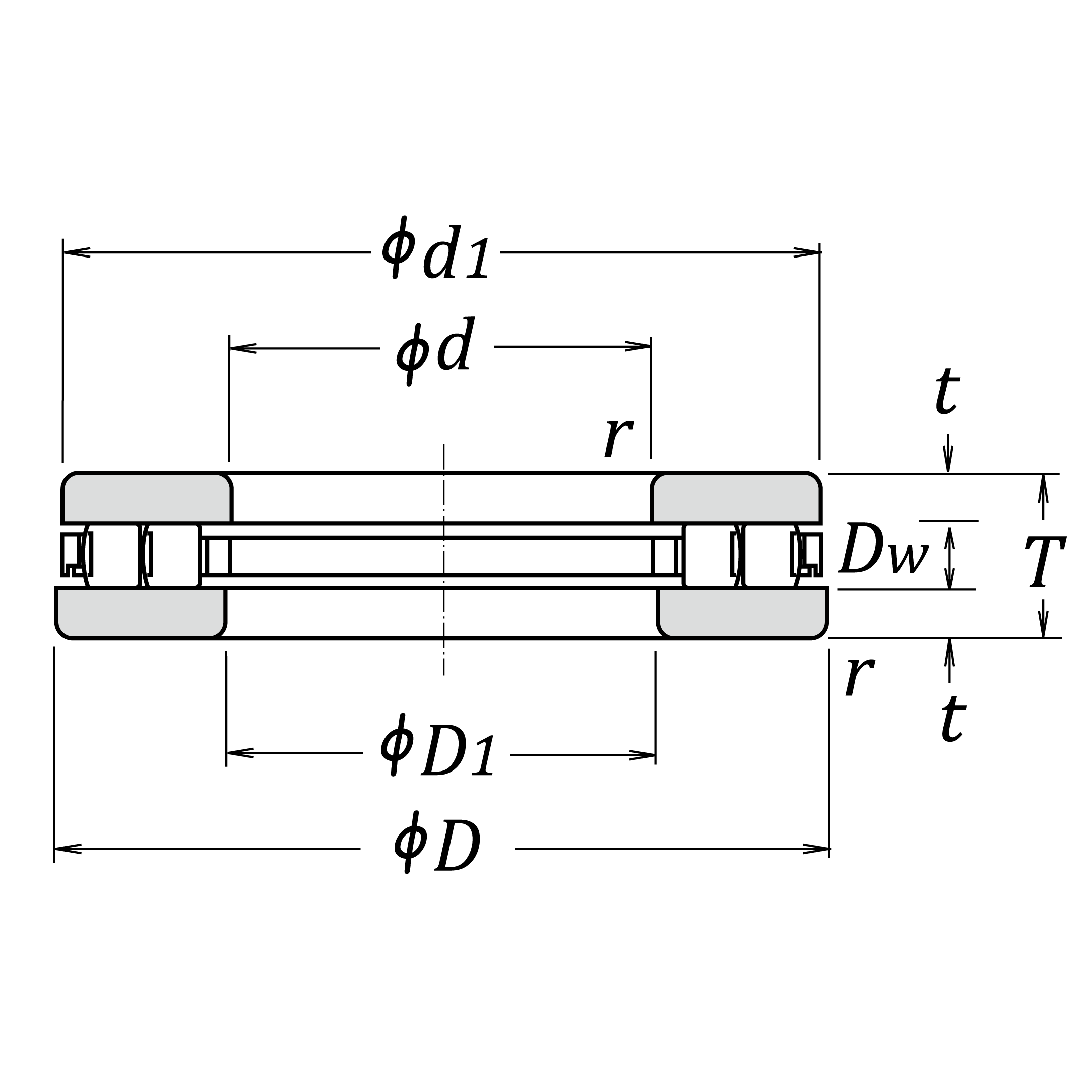

Boundary Dimensions

d	65	mm	Bore diameter
D	115	mm	Outside diameter
T,T3	30	mm	Height
r (min.)	1.1	mm	Chamfer dimension

Basic Load Ratings

Ca	145000	N	Basic dynamic load rating
C0a	515000	N	Basic static load rating

Speeds

Grease	850	min-1	Grease lubrication
Oil (Oil-bath)	2600	min-1	Oil-bath lubrication

Dimensions

Dw	11	mm
t	9.5	mm	Height shaft washer
d1	115	mm	Outside diameter shaft washer
D1	67	mm	Inner diameter housing washer

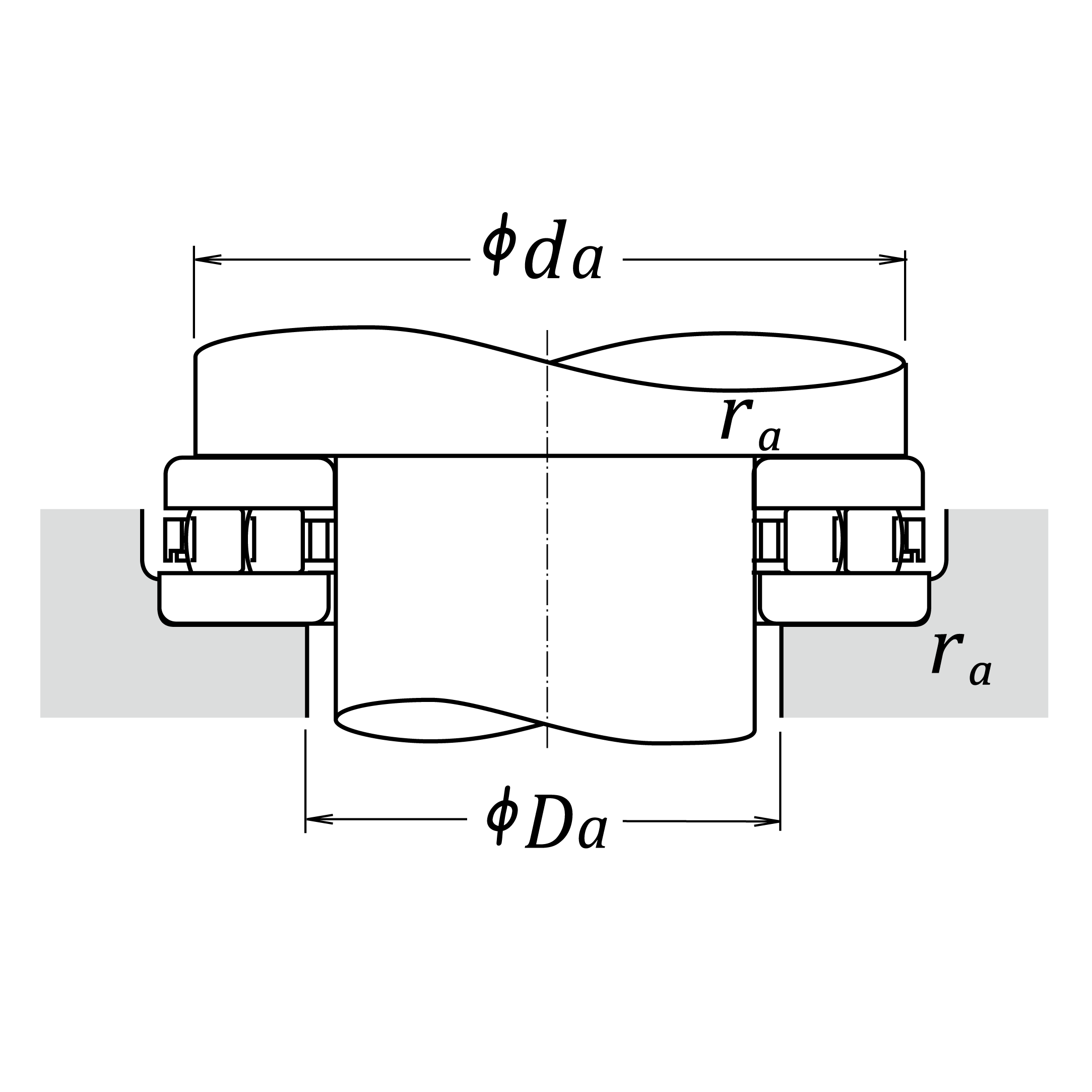

Abutment and Fillet Dimensions

da (min.)	108	mm	Diameter of shaft abutment
Da (max.)	73	mm	Diameter of housing abutment
ra (max.)	1	mm	Radius of shaft or housing fillet

Mass

Mass approx.

1.44

Mass approx.

CAD

FAQs (3)

Customer Questions

Can cylindrical roller thrust bearings be used without positioning by the outside diameter of the outer ring?

The fixed-side ring (outer ring) does not require especially precise positioning; however, a guide should be used to prevent the raceway from shifting and protruding from the rolling surface of the rollers.

If a cylindrical roller thrust bearing is used with a horizontal shaft, what kind of fit will be used with the housing side? Is it necessary to provide the same “0.25 mm or above” clearance as thrust ball bearings?

This clearance is recommended for thrust ball bearings as they may be subject to radial loads. Cylindrical roller thrust bearings cannot handle radial loads by design, so such a large clearance is not necessary.

Can thrust roller bearings sustain radial loads?

With the exception of cylindrical roller thrust bearings and some tapered roller thrust bearings (TTF type), it is possible in theory for thrust roller bearings to take radial loads to a certain percentage of the axial load. However, stable operation under these conditions requires careful restrictions.

For this reason, we primarily recommend thrust roller bearings for axial load applications.
