NU2336EM

Single-Row Cylindrical Roller Bearings

NU2336EM

Single-Row Cylindrical Roller Bearings

Skip to the beginning of the images gallery

Images shown are representations. Designs and specifications may differ from actual products.

Parts Number
NU2336EMC3

Product Information

Display units Metric Imperial

Parts Number

NU2336EMC3

Boundary Dimensions

d	180	mm	Bore diameter
D	380	mm	Outside diameter
B	126	mm	Width
FW	227	mm	Raceway diameter of inner ring
r (min.)	4	mm	Chamfer dimension
r1 (min.)	4	mm	Chamfer dimension

Basic Load Ratings

Cr	1920000	N	Basic dynamic load rating
C0r	2220000	N	Basic static load rating

Speeds

Thermal Speed Rating (Oil-bath)	1500	min-1	Oil-bath lubrication subject to conditions outlined in ISO 15312
Mechanical (forced-circulation oil)	2000	min-1	Properly designed and controlled forced-circulation oil lubrication
Grease	1300	min-1	Grease lubrication
Oil (Oil-bath)	1700	min-1	Oil-bath lubrication

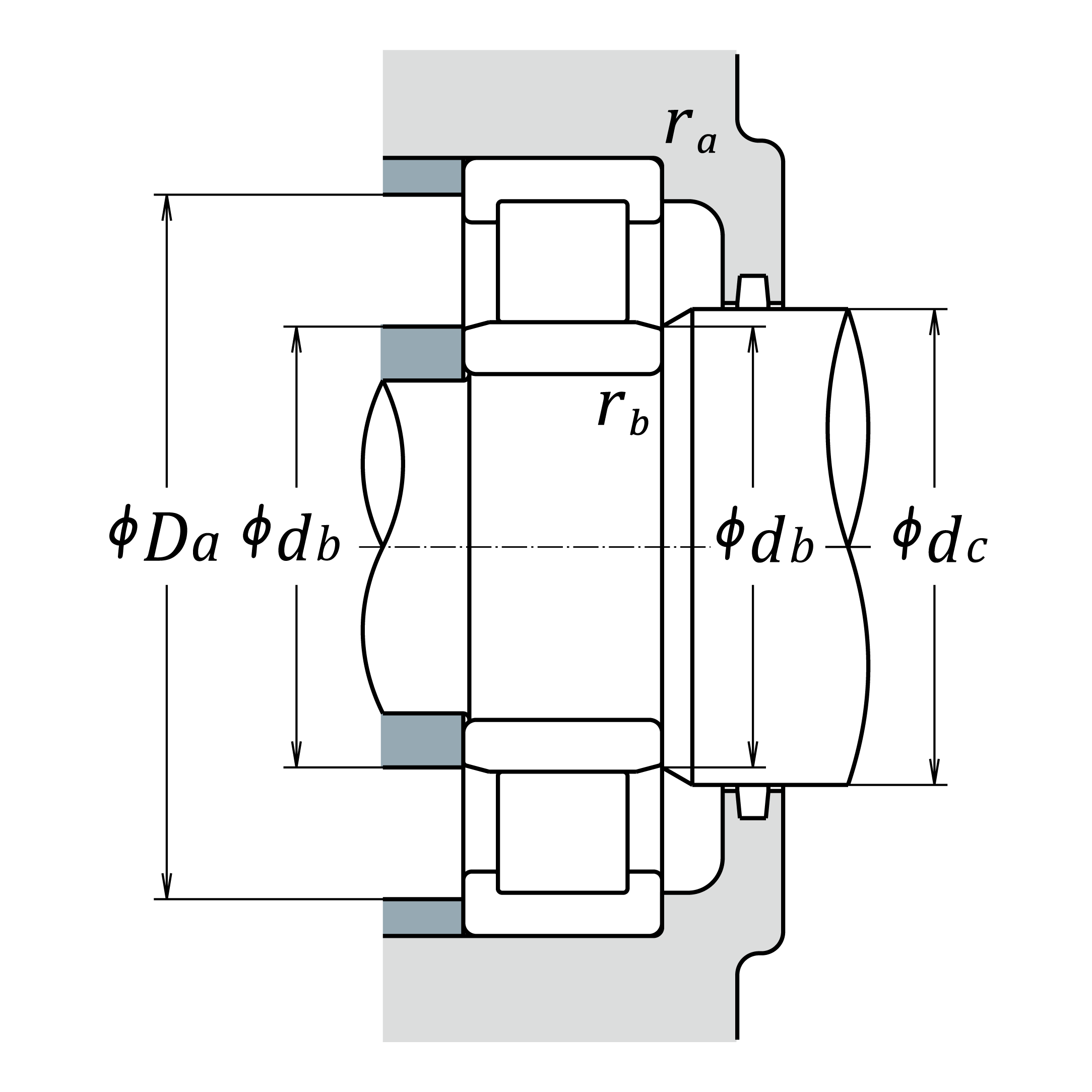

Abutment and Fillet Dimensions

da (min.)	196	mm	Diameter of shaft abutment
db (min.)	196	mm	Diameter of shaft / spacer sleeve abutment
db (max.)	222	mm	Diameter of shaft / spacer sleeve abutment
dc (min.)	235	mm	Diameter of shaft abutment
dd (min.)	255	mm	Diameter of shaft abutment
Da (max.)	364	mm	Diameter of housing abutment
ra (max.)	3	mm	Radius of shaft or housing fillet
rb (max.)	3	mm	Radius of shaft or housing fillet

Mass

Mass approx.

73.7

Mass approx.

CAD

FAQs (3)

Customer Questions

How do ball bearings and roller bearings differ?

Ball bearings are ideal for high-speed rotation, while roller bearings are more suited for high loads.

Do cylindrical roller bearings come with seals?

Because cylindrical roller bearings have separable inner and outer rings, they generally come in an open specification without seals.
As such, please apply seals or other protection around the equipment mounting.

How are the EW, EM, and ET Series different?

EW Series bearings are small and utilize pressed cages, making them suitable for standard operating conditions.
ET Series bearings use polyamide-resin cages suited for high temperatures.

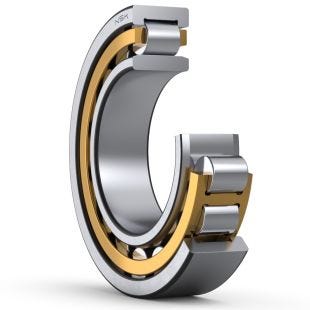

Finally, EM Series bearings have machined brass cages for use in harsh applications such as gearboxes and vibrating machinery or in environments where the bearing must be quiet, such as in mid-to-large size motors.

More Information

More Information
NSK Product Type2	CRB_SR
NSK Product Type	Bearing

Single-Row Cylindrical Roller Bearings

Single-Row Cylindrical Roller Bearings

Parts Number

Boundary Dimensions

Basic Load Ratings

Speeds

Abutment and Fillet Dimensions

Mass
