NUP2205EM

Single-Row Cylindrical Roller Bearings

NUP2205EM

Single-Row Cylindrical Roller Bearings

Skip to the beginning of the images gallery

Images shown are representations. Designs and specifications may differ from actual products.

Grouped product items
Parts Number
NUP2205EM
NUP2205EMC3
NUP2205EMC2
NUP2205EMC4

Product Information

Display units Metric Imperial

Designations

NUP2205EM

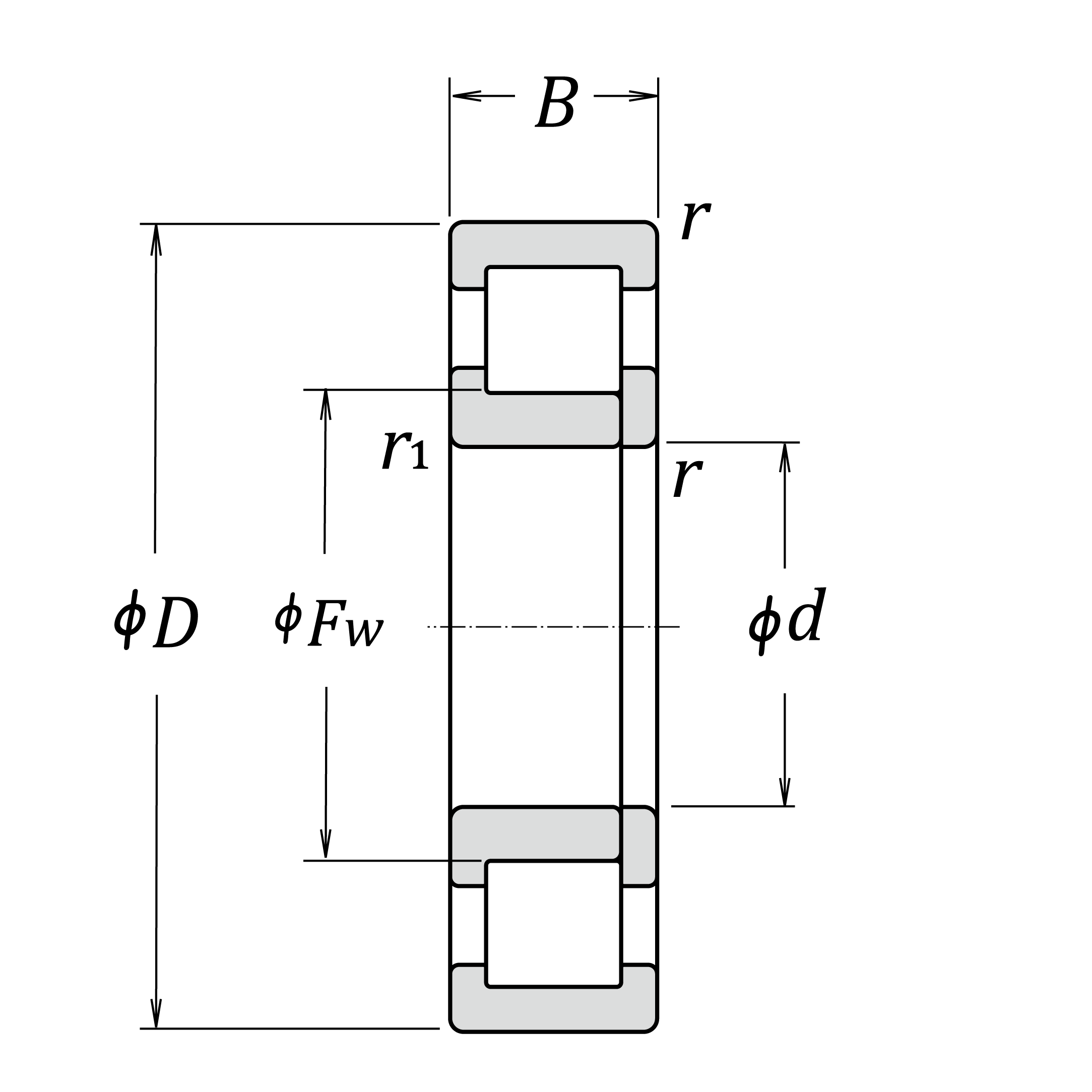

Boundary Dimensions

d	25	mm	Bore diameter
D	52	mm	Outside diameter
B	18	mm	Width
FW	31.5	mm	Raceway diameter of inner ring
r (min.)	1	mm	Chamfer dimension
r1 (min.)	0.6	mm	Chamfer dimension

Basic Load Ratings

Cr	43000	N	Basic dynamic load rating
C0r	34500	N	Basic static load rating

Speeds

Thermal Speed Rating (Oil-bath)	14000	min-1	Oil-bath lubrication subject to conditions outlined in ISO 15312
Mechanical (forced-circulation oil)	20000	min-1	Properly designed and controlled forced-circulation oil lubrication
Grease	12000	min-1	Grease lubrication
Oil (Oil-bath)	14000	min-1	Oil-bath lubrication

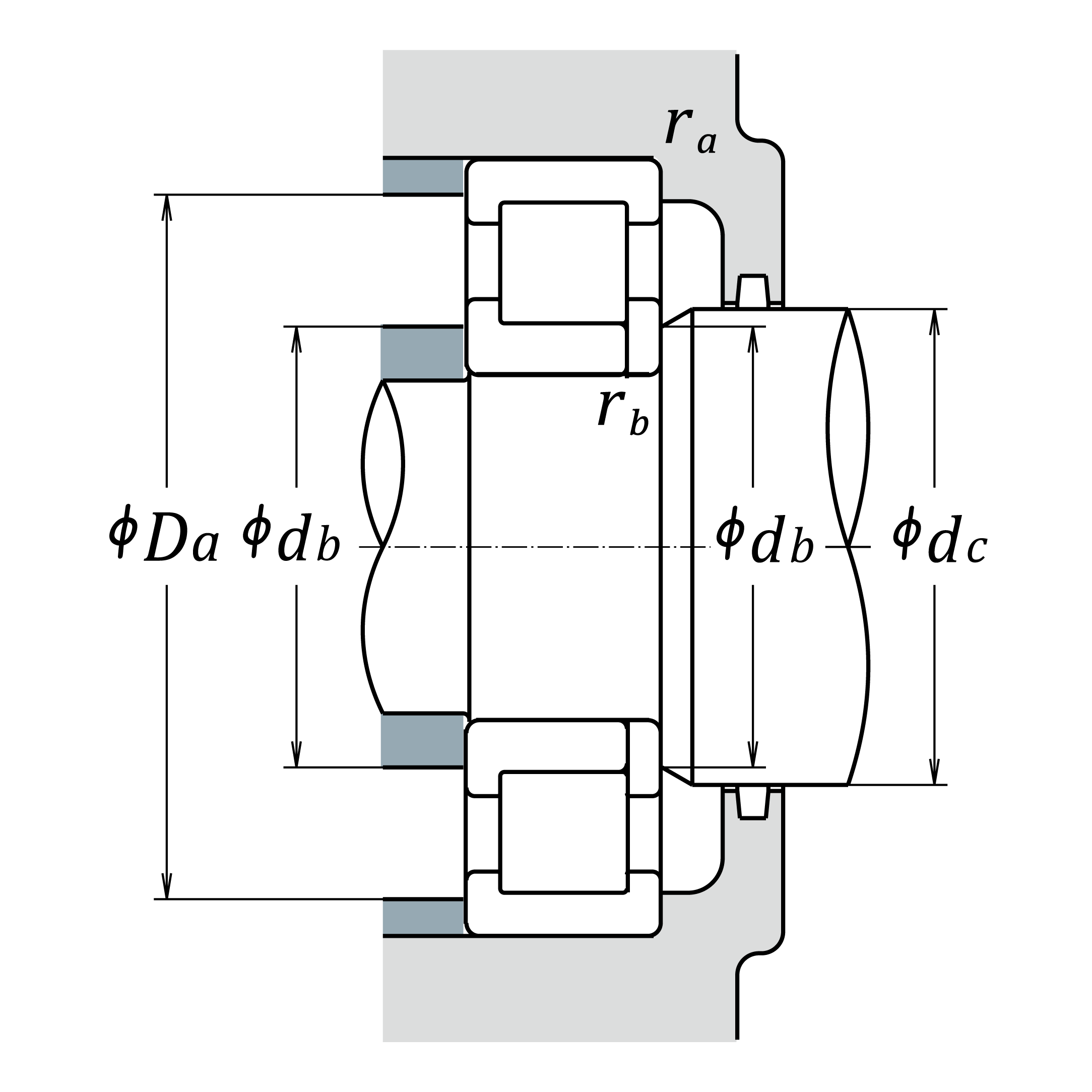

Abutment and Fillet Dimensions

da (min.)	30	mm	Diameter of shaft abutment
db (min.)	29	mm	Diameter of shaft / spacer sleeve abutment
db (max.)	30	mm	Diameter of shaft / spacer sleeve abutment
dc (min.)	34	mm	Diameter of shaft abutment
dd (min.)	37	mm	Diameter of shaft abutment
Da (max.)	47	mm	Diameter of housing abutment
ra (max.)	1	mm	Radius of shaft or housing fillet
rb (max.)	0.6	mm	Radius of shaft or housing fillet

Mass

Mass approx.

0.194

Mass approx.

CAD

FAQs (3)

Customer Questions

How do ball bearings and roller bearings differ?

Ball bearings are ideal for high-speed rotation, while roller bearings are more suited for high loads.

Do cylindrical roller bearings come with seals?

Because cylindrical roller bearings have separable inner and outer rings, they generally come in an open specification without seals.
As such, please apply seals or other protection around the equipment mounting.

How are the EW, EM, and ET Series different?

EW Series bearings are small and utilize pressed cages, making them suitable for standard operating conditions.
ET Series bearings use polyamide-resin cages suited for high temperatures.

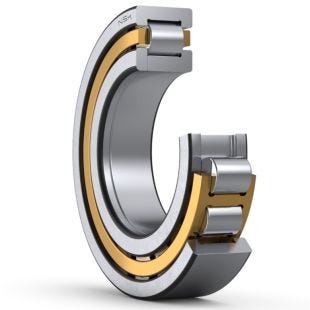

Finally, EM Series bearings have machined brass cages for use in harsh applications such as gearboxes and vibrating machinery or in environments where the bearing must be quiet, such as in mid-to-large size motors.

More Information

More Information
NSK Product Type2	CRB_SR
NSK Product Type	Bearing

Single-Row Cylindrical Roller Bearings

Single-Row Cylindrical Roller Bearings

Designations

Boundary Dimensions

Basic Load Ratings

Speeds

Abutment and Fillet Dimensions

Mass
