UCFH201D1

Modified Flanged Unit, Cast Housing

UCFH201D1

Modified Flanged Unit, Cast Housing

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

Images shown are representations. Designs and specifications may differ from actual products.

Parts Number
UCFH201D1 X AS3S

Product Information

Designations

UCFH201D1

Included products

Bearing	UC201D1		Bearing
Housing	FH204D1		Housing

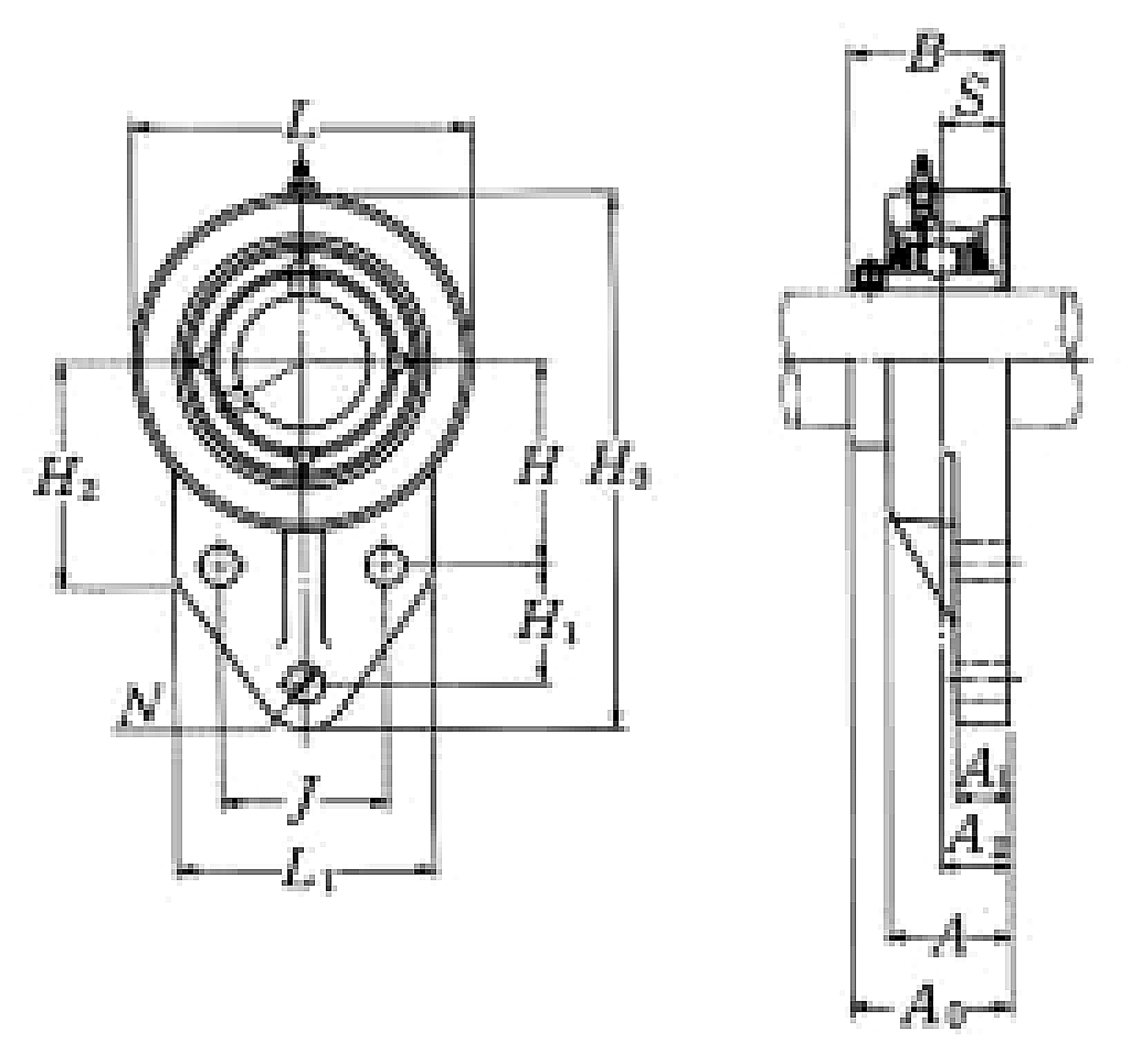

Nominal Dimensions

d	12	mm	Bore diameter
L,L1	62	mm	Overall height
H	42	mm	Height of spherical seat centre
H3	110	mm	Overall height
J	32	mm	Distance between attachment bolts
N	10	mm	Diameter of attachment bolt hole
A2	15	mm	Flange width
A1	13	mm	Flange width
A	25.5	mm	Base width
A0	33.3	mm	Overall width
B,B1,B2	31	mm	Width of inner ring
H1	27	mm	Distance between attachment bolt holes
S	12.7	mm	Distance from Opposite side face of locking device to raceway centre
L1	52	mm	Foot width

Mounting information

G

M8

Bolt size

Basic Load Ratings

Cr	12.8	kN	Basic dynamic load rating
C0r	6.65	kN	Basic static load rating

Mass

mass

0.6

kg

Mass approx.

CAD

Customer Questions

More Information

More Information
NSK Product Type	Bearing Unit
