Round Flanged Unit, Cast Housing with Spigot Joint
Round Flanged Unit, Cast Housing with Spigot Joint
|
Designations
Included products
|
Bearing
|
UKX12D1
|
|
Bearing |
|
Housing
|
FCX12D1 |
|
Housing |
Associated products
|
Adapter sleeve
|
H2312X
|
|
Adapter sleeve |

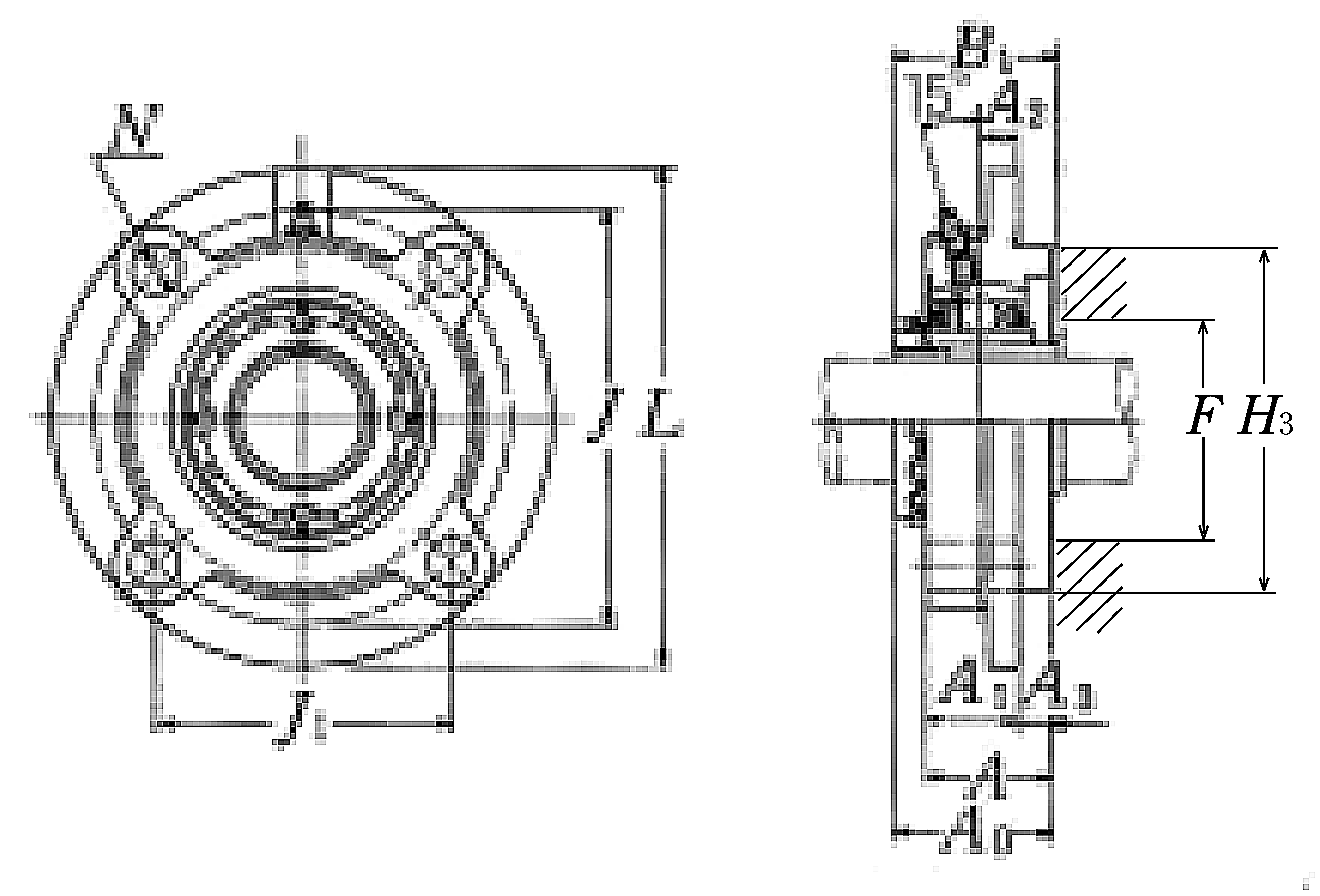

Nominal Dimensions
|
d
|
55 |
mm |
Bore diameter |
|
L,H
|
194 |
mm |
Overall length |
|
H3
|
140 |
mm |
Outer diameter of Spigot Joint |
|
J
|
165 |
mm |
Pitch diameter of attachment bolts |
|
J1
|
116.7 |
mm |
Distance between attachment bolts |
|
N
|
16 |
mm |
Diameter of attachment bolt hole |
|
A3
|
20 |
mm |
Height of of Spigot Joint |
|
A2
|
11 |
mm |
Flange width |
|
A1
|
33 |
mm |
Flange width |
|
A
|
53 |
mm |
Base width |
|
A0
|
64 |
mm |
Overall width |
|
B,B1,B2
|
62 |
mm |
Width of inner ring |
|
F
|
69 |
mm |
Diameter of housing abutment |
Mounting information
Basic Load Ratings
|
Cr
|
57.5 |
kN |
Basic dynamic load rating |
|
C0r
|
40 |
kN |
Basic static load rating |
Mass
|
More Information
| NSK Product Type |
Bearing Unit |
