AELPB201

Light Pillow Block Unit, Cast Housing

AELPB201

Light Pillow Block Unit, Cast Housing

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

Images shown are representations. Designs and specifications may differ from actual products.

Parts Number
AELPB201 X AS3S

Product Information

Designations

AELPB201

Included products

Bearing	AEL201		Bearing
Housing	PB201		Housing

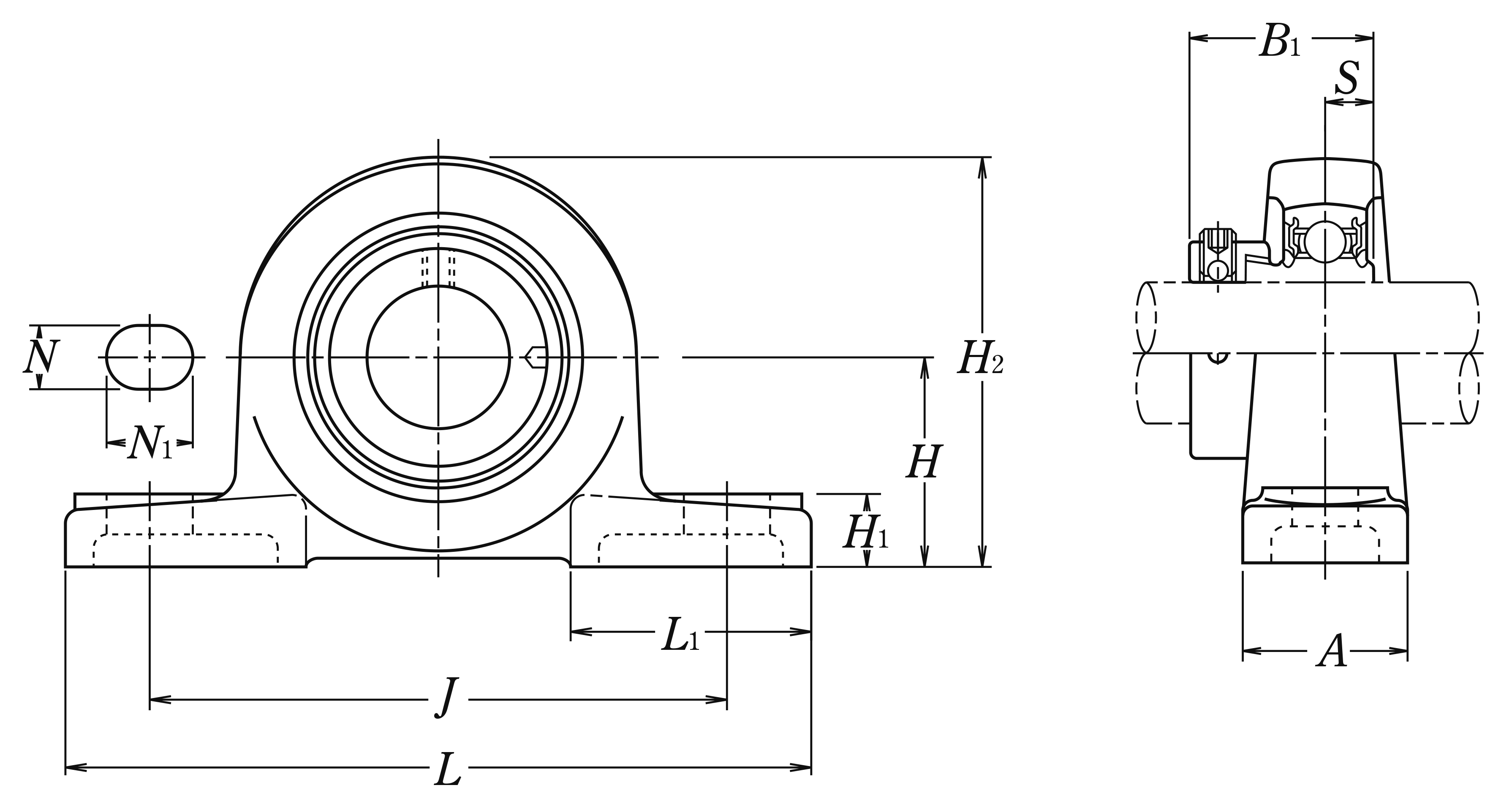

Nominal Dimensions

d	12	mm	Bore diameter
N1	16	mm	Length of attachment bolt hole
L	114	mm	Overall length
H	30.2	mm	Height of spherical seat centre
J	87	mm	Distance between attachment bolts
N	11	mm	Diameter of attachment bolt hole
A	25	mm	Base width
H1	12	mm	Distance between bottoms of piloting grooves
B1	28.6	mm	Width of inner ring
S	6.5	mm	Distance from Opposite side face of locking device to raceway centre
L1	38	mm	Foot width
H2	57	mm	Overall height

Mounting information

G

M 8

Bolt size

Basic Load Ratings

Cr	9.6	kN	Basic dynamic load rating
C0r	4.6	kN	Basic static load rating

Mass

mass

0.4

kg

Mass approx.

CAD

Customer Questions

More Information

More Information
NSK Product Type	Bearing Unit
