Pillow Block Unit, Pressed Steel Housing with rubber ring
Pillow Block Unit, Pressed Steel Housing with rubber ring
|
Designations
Included products
|
Bearing
|
AEL201
|
|
Bearing |
|
Housing
|
PP204 |
|
Housing |
|
Rubber ring
|
R201 |
|
Rubber ring |

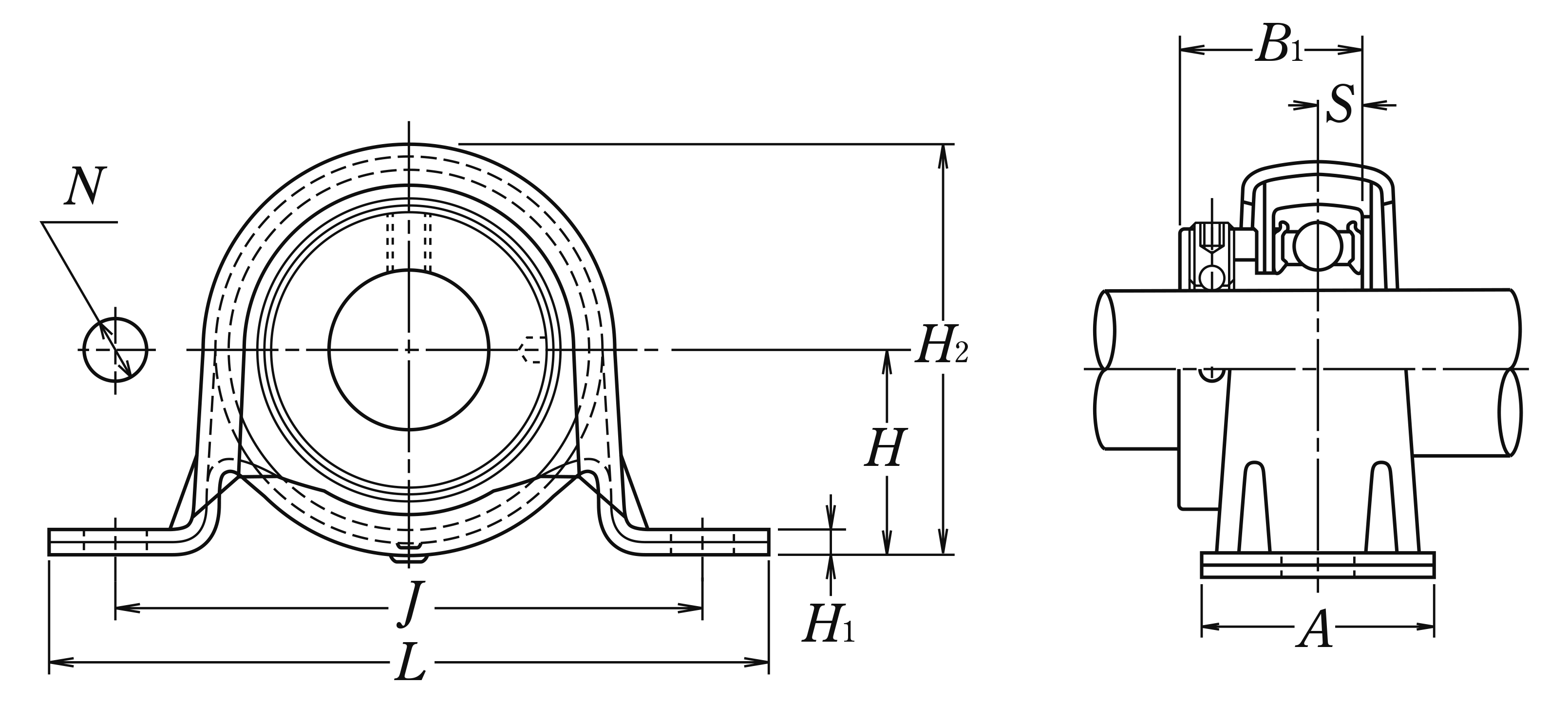

Nominal Dimensions
|
d
|
12 |
mm |
Bore diameter |
|
L
|
98 |
mm |
Overall length |
|
H
|
25.4 |
mm |
Height of spherical seat centre |
|
J
|
76 |
mm |
Distance between attachment bolts |
|
N
|
9.5 |
mm |
Diameter of attachment bolt hole |
|
A
|
32 |
mm |
Base width |
|
H1
|
3.2 |
mm |
Distance between bottoms of piloting grooves |
|
B1
|
28.6 |
mm |
Width of inner ring |
|
S
|
6.5 |
mm |
Distance from Opposite side face of locking device to raceway centre |
|
H2
|
50.5 |
mm |
Overall height |
Mounting information
Permissible housing load
|
CR
|
1 |
kN |
Radial |
|
CA
|
0.2 |
kN |
Axial |
Basic Load Ratings
|
Cr
|
9.6 |
kN |
Basic dynamic load rating |
|
C0r
|
4.6 |
kN |
Basic static load rating |
Mass
|
More Information
| NSK Product Type |
Bearing Unit |
