ASPP202

Pillow Block Unit, Pressed Steel Housing

ASPP202

Pillow Block Unit, Pressed Steel Housing

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

Images shown are representations. Designs and specifications may differ from actual products.

Parts Number
ASPP202 X AS3S

Product Information

Designations

ASPP202

Included products

Bearing	AS202		Bearing
Housing	PP203		Housing

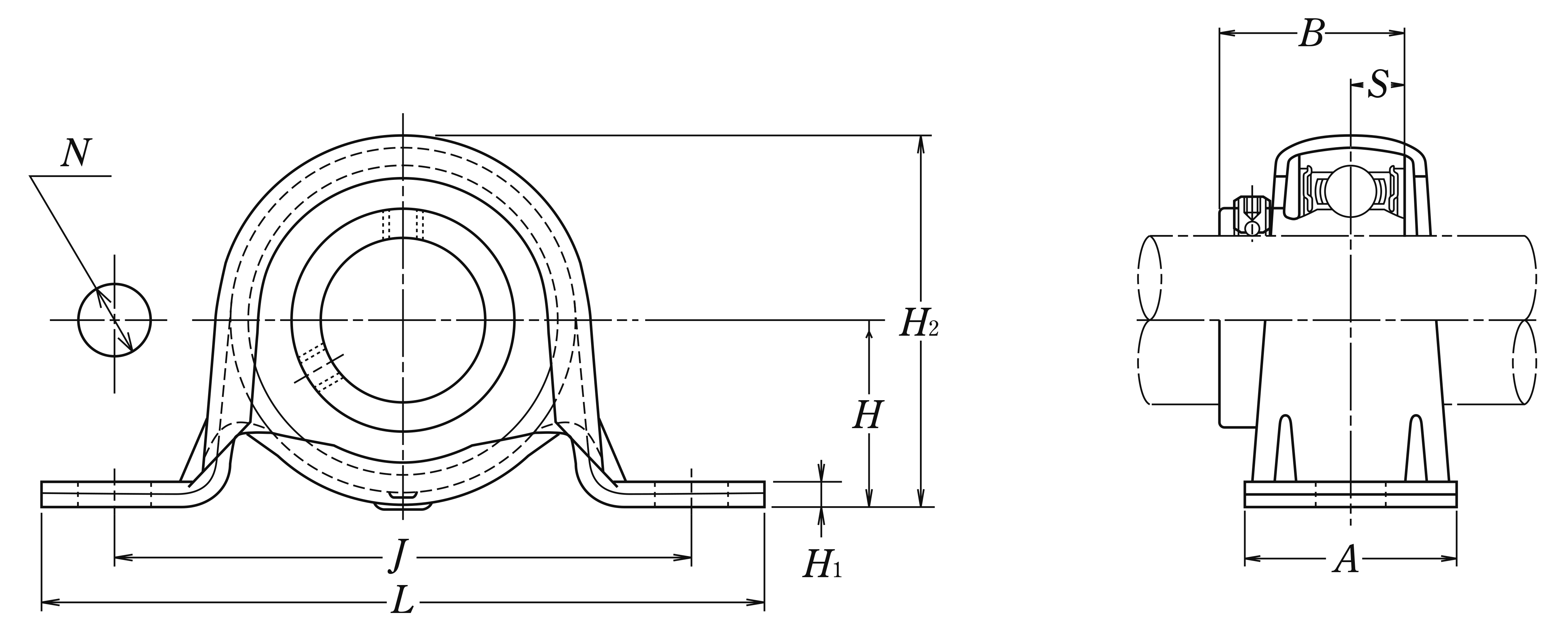

Nominal Dimensions

d	15	mm	Bore diameter
L	86	mm	Overall length
H	22.2	mm	Height of spherical seat centre
J	68	mm	Distance between attachment bolts
N	9.5	mm	Diameter of attachment bolt hole
A	25	mm	Base width
H1	3.2	mm	Distance between bottoms of piloting grooves
B	22	mm	Width of inner ring
S	6	mm	Distance from Opposite side face of locking device to raceway centre
H2	43.8	mm	Overall height

Mounting information

G

M 8

Bolt size

Basic Load Ratings

Cr	9.6	kN	Basic dynamic load rating
C0r	4.6	kN	Basic static load rating

Mass

mass

0.2

kg

Mass approx.

CAD

Customer Questions

More Information

More Information
NSK Product Type	Bearing Unit
