UCP201D1

Pillow Block Unit, Cast Housing

UCP201D1

Pillow Block Unit, Cast Housing

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

Images shown are representations. Designs and specifications may differ from actual products.

Parts Number
UCP201D1 X AS3S

Product Information

Designations

UCP201D1

Included products

Bearing	UC201D1		Bearing
Housing	P203D1		Housing

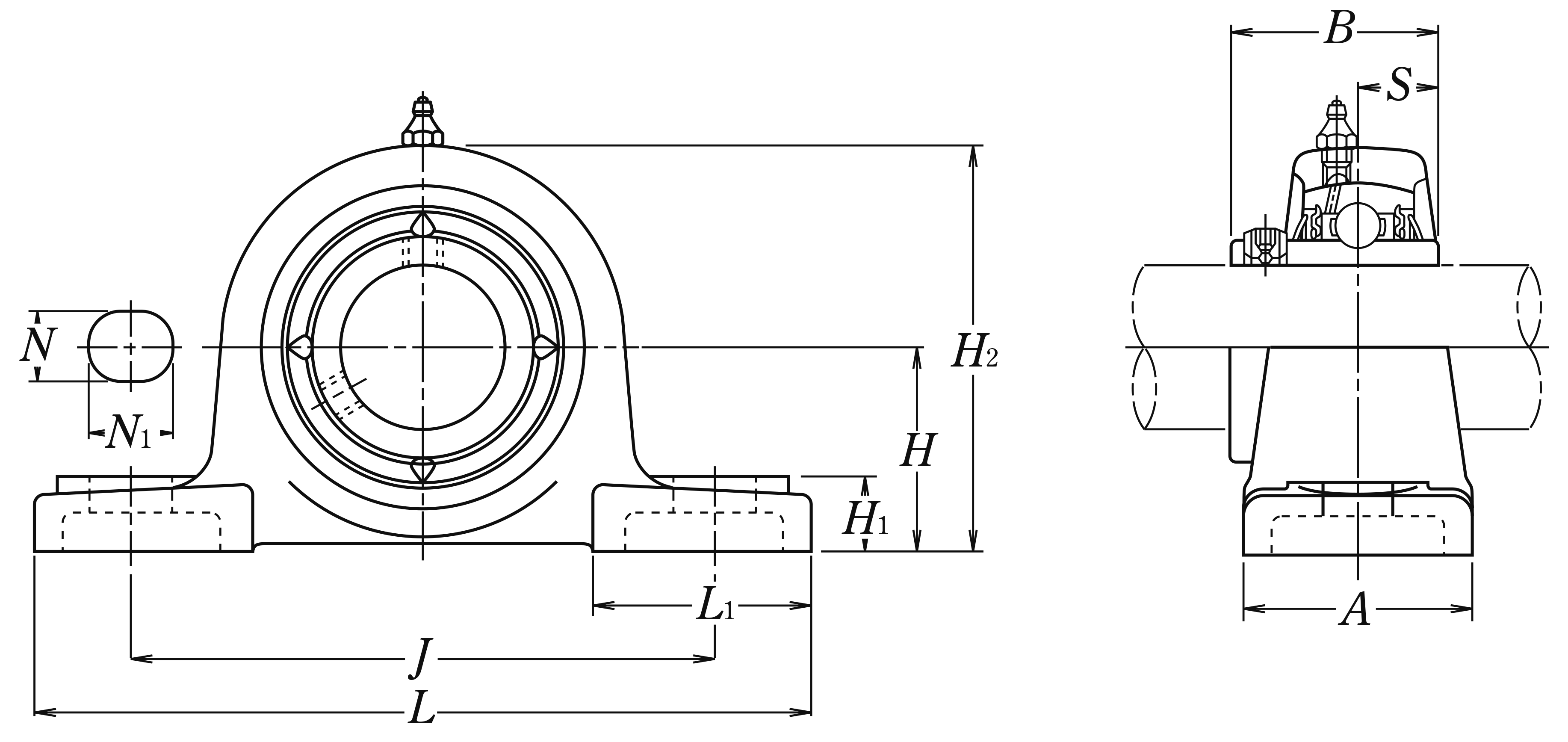

Nominal Dimensions

d	12	mm	Bore diameter
N1	16	mm	Length of attachment bolt hole
L	127	mm	Overall length
H	30.2	mm	Height of spherical seat centre
J	95	mm	Distance between attachment bolts
N	13	mm	Diameter of attachment bolt hole
A	38	mm	Base width
H1	14	mm	Distance between bottoms of piloting grooves
B	31	mm	Width of inner ring
S	12.7	mm	Distance from Opposite side face of locking device to raceway centre
L1	42	mm	Foot width
H2	62	mm	Overall height

Mounting information

G

M10

Bolt size

Basic Load Ratings

Cr	12.8	kN	Basic dynamic load rating
C0r	6.65	kN	Basic static load rating

Mass

mass

0.7

kg

Mass approx.

CAD

Customer Questions

More Information

More Information
NSK Product Type	Bearing Unit
