UCPE201D1

Pillow Block Unit, Ductile Cast Housing

UCPE201D1

Pillow Block Unit, Ductile Cast Housing

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

Images shown are representations. Designs and specifications may differ from actual products.

Parts Number
UCPE201D1 X AS3S

Product Information

Designations

UCPE201D1

Included products

Bearing	UC201D1		Bearing
Housing	PE203D1		Housing

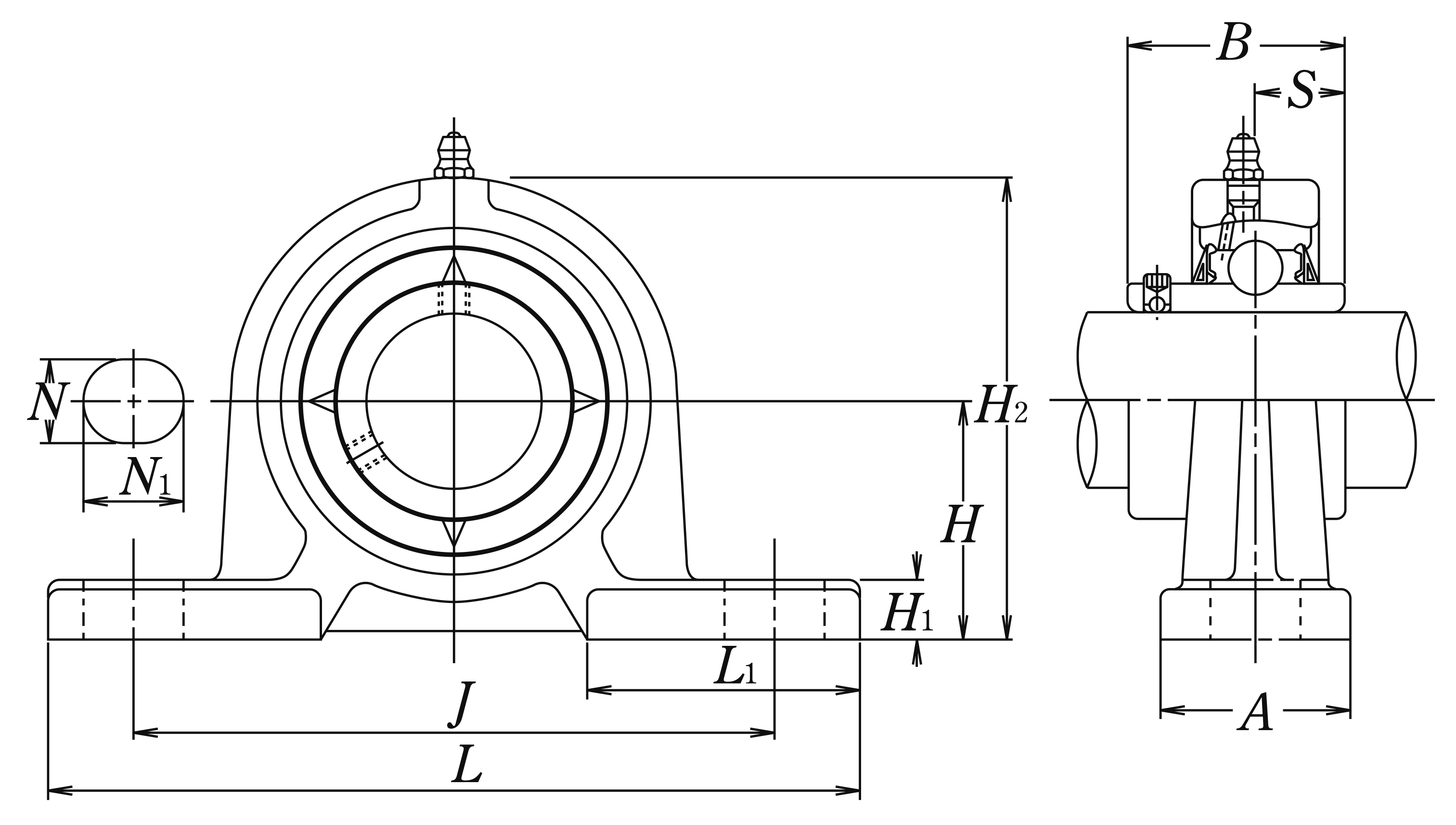

Nominal Dimensions

d	12	mm	Bore diameter
N1	14	mm	Length of attachment bolt hole
L	120	mm	Overall length
H	30.2	mm	Height of spherical seat centre
J	95	mm	Distance between attachment bolts
N	12	mm	Diameter of attachment bolt hole
A	30	mm	Base width
H1	9	mm	Distance between bottoms of piloting grooves
B	31	mm	Width of inner ring
S	12.7	mm	Distance from Opposite side face of locking device to raceway centre
L1	42	mm	Foot width
H2	61	mm	Overall height

Mounting information

G

M10

Bolt size

Basic Load Ratings

Cr	12.8	kN	Basic dynamic load rating
C0r	6.65	kN	Basic static load rating

Mass

mass

0.5

kg

Mass approx.

CAD

Customer Questions

More Information

More Information
NSK Product Type	Bearing Unit
