Narrow Pillow Block Unit, Cast Housing
Narrow Pillow Block Unit, Cast Housing
|
Designations
Included products
|
Bearing
|
UC201D1
|
|
Bearing |
|
Housing
|
UP204D1 |
|
Housing |

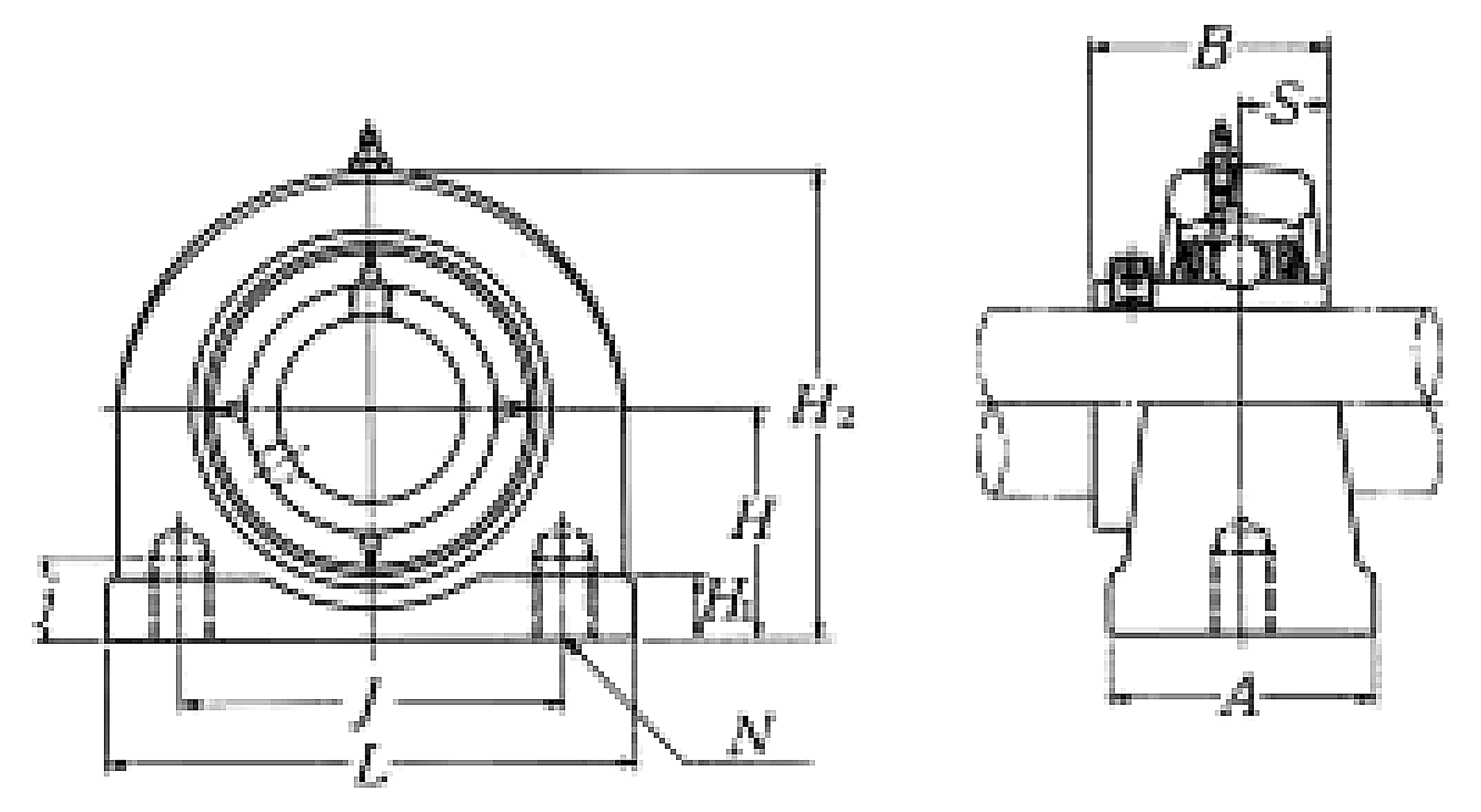

Nominal Dimensions
|
d
|
12 |
mm |
Bore diameter |
|
L
|
76 |
mm |
Overall length |
|
H
|
30.2 |
mm |
Height of spherical seat centre |
|
J
|
52 |
mm |
Distance between attachment bolts |
|
A
|
38 |
mm |
Base width |
|
H1
|
11 |
mm |
Distance between bottoms of piloting grooves |
|
B
|
31 |
mm |
Width of inner ring |
|
S
|
12.7 |
mm |
Distance from Opposite side face of locking device to raceway centre |
|
j
|
13 |
mm |
Thread length |
|
H2
|
62 |
mm |
Overall height |
Mounting information
Basic Load Ratings
|
Cr
|
12.8 |
kN |
Basic dynamic load rating |
|
C0r
|
6.65 |
kN |
Basic static load rating |
Mass
|
More Information
| NSK Product Type |
Bearing Unit |
