F625VV

Extra Small Ball Bearings and Miniature Ball Bearings Metric Series With Flamge

F625VV

Extra Small Ball Bearings and Miniature Ball Bearings Metric Series With Flamge

Skip to the beginning of the images gallery

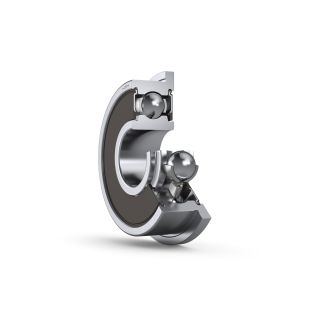

Images shown are representations. Designs and specifications may differ from actual products.

Parts Number
F625VVMC5P6

Product Information

Display units Metric Imperial

Parts Number

F625VVMC5P6

Boundary Dimensions

d	5	mm	Bore diameter
D	16	mm	Outside diameter
B	5	mm	Width
D1,2	18	mm	Flange diameter
C1,2	1	mm	Flange width
r1 (min.)	0.3	mm	Chamfer dimension

Basic Load Ratings

Cr	1910	N	Basic dynamic load rating
C0r	670	N	Basic static load rating

Speeds

Grease

36000

min-1

Grease lubrication

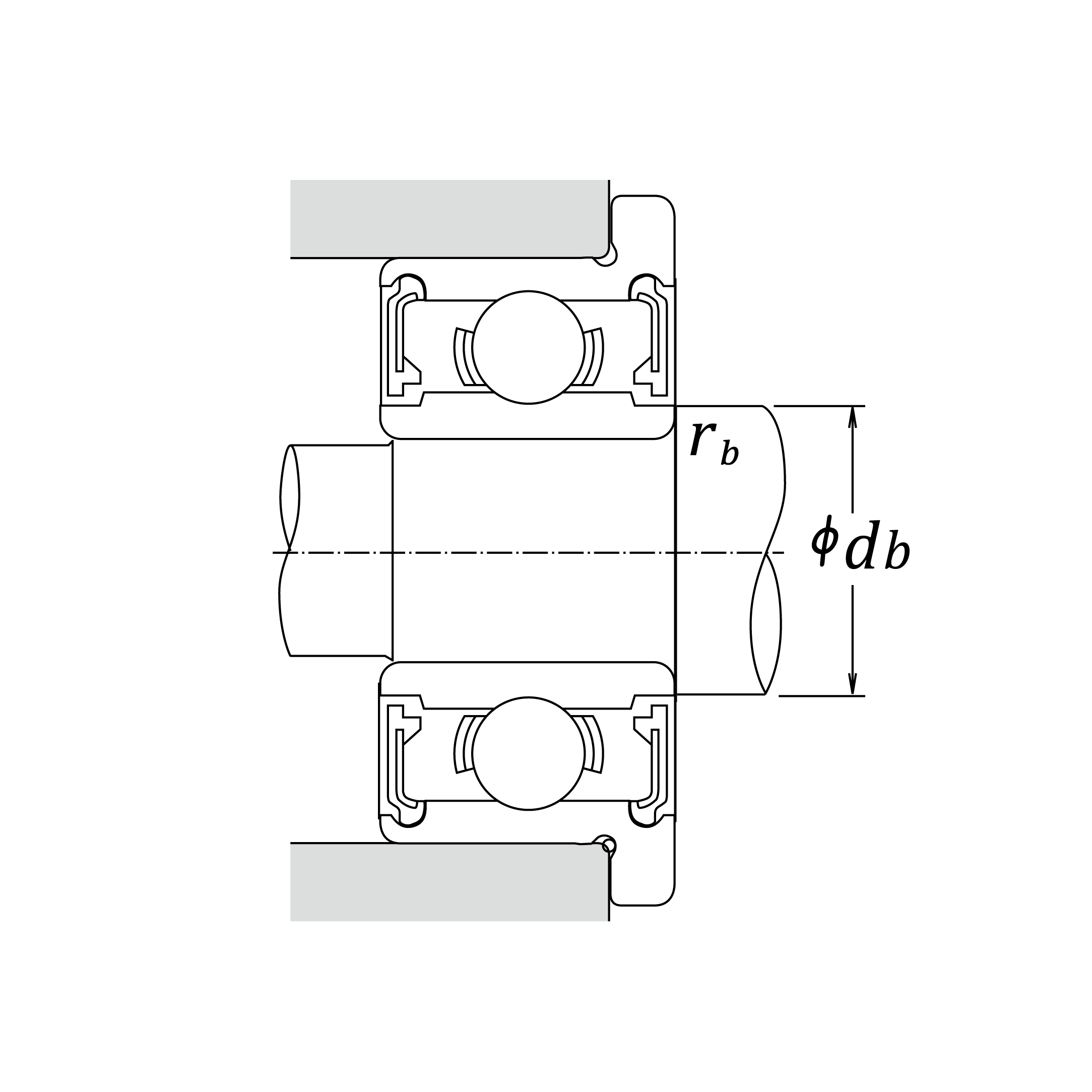

Abutment and Fillet Dimensions

db (max.)	7.5	mm	Diameter of shaft abutment
rb (max.)	0.3	mm	Radius of shaft or housing fillet

Additional information

z	7		Number of Balls
Dw	2.778	mm	Ball Diameter

Mass

Mass approx.

0.0053

Mass approx.

CAD

FAQs (3)

Customer Questions

What are radial loads and axial loads?

Loads are defined by their direction. Loads perpendicular to the shaft are called radial loads and loads parallel to the shaft are called axial (thrust) loads.

How do deep groove ball bearings (DGBBs) differ from single-row angular contact ball bearings?

While DGBBs can handle axial loads in both directions, single-row angular contact ball bearings can only receive axial load in one direction.

What are the differences between open, sealed, and shielded deep groove ball bearings?

Seals and shields offer additional protection for bearing components and help to improve and maintain lubrication. In terms of sealing performance, sealed bearings rank best, followed by shielded bearings, then finally open bearings.
NSK uses supplementary designations D, DU, DW, and V (DD, DDU, DDW, VV) for sealed bearings and Z (ZZ) for shielded bearings. No supplementary designations are listed for open bearings.

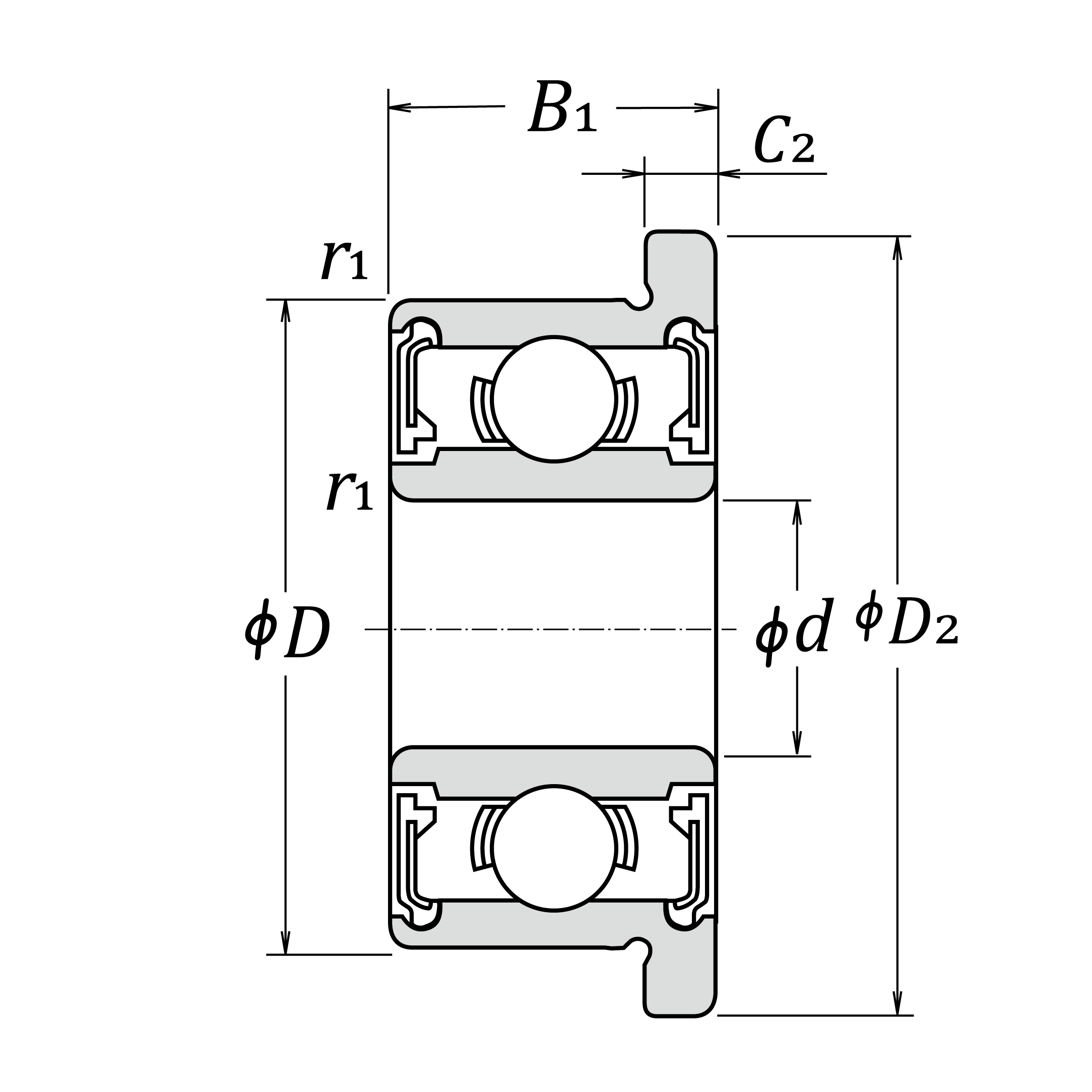

Drawing for Reference

Designations	Basic Load Ratings		Radial Internal Clearance			Tolerance Class	Limiting Speeds		Number of Balls	Ball Diameter		Mass
Designations	Cr (N)	C0r (N)		min	max	Tolerance Class	Grease (min-1)	Oil (Oil-bath) (min-1)	Number of Balls	(mm)	(inch)	(kg)
F625VV	1910	670				P6	36000		7	2.778	0.10937	0.0053

Not to scale.
(*) The chamfer dimensions are minimum values.
F684, F684ZZ : Chamfer dimensions are not based on ISO 15.
