BL206

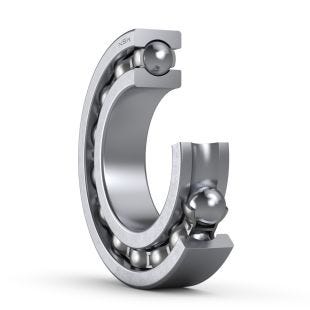

Maximum-Type Ball Bearings

BL206

Maximum-Type Ball Bearings

Skip to the beginning of the images gallery

Images shown are representations. Designs and specifications may differ from actual products.

Grouped product items
Parts Number
BL206
BL206C3

Product Information

Display units Metric Imperial

Designations

BL206

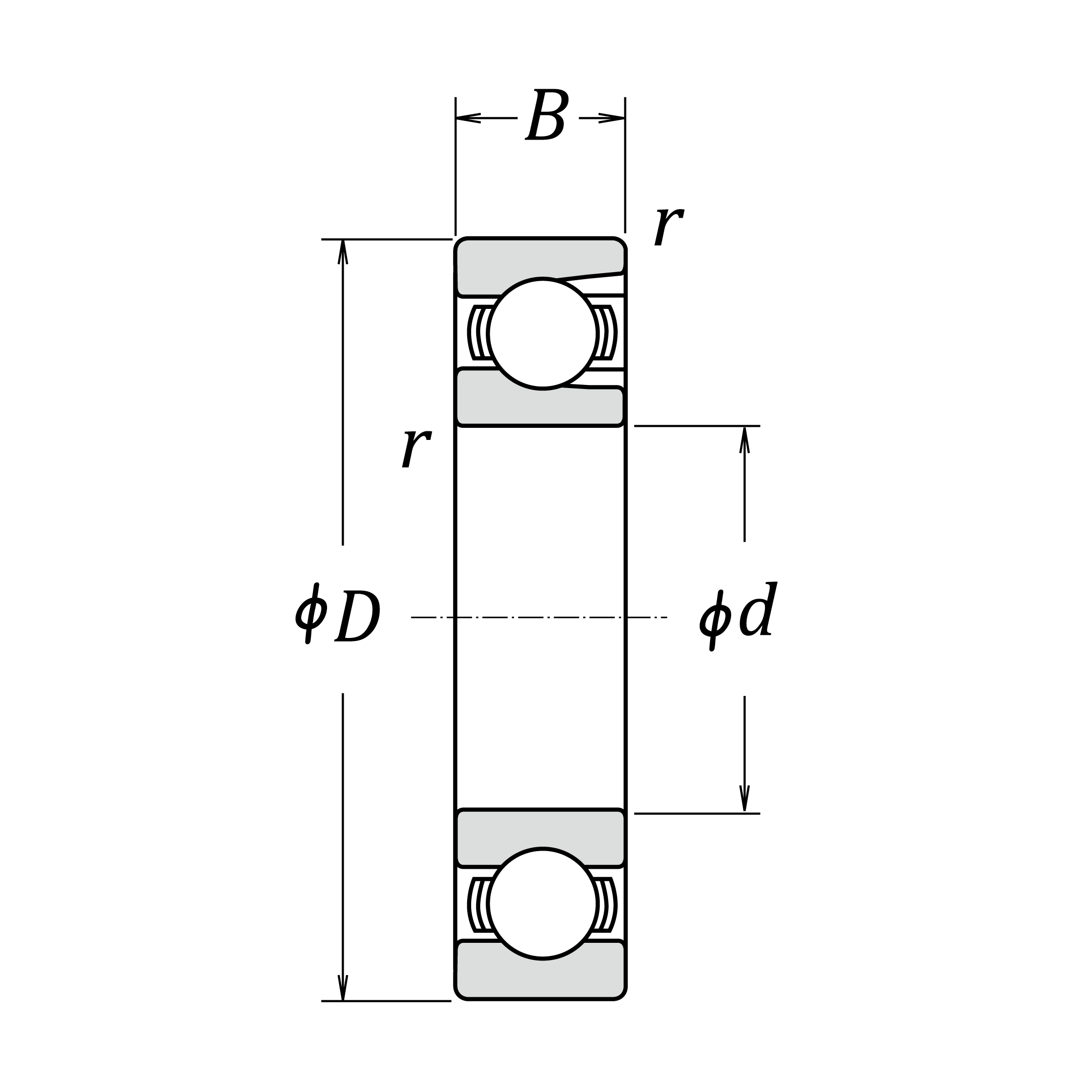

Boundary Dimensions

d	30	mm	Bore diameter
D	62	mm	Outside diameter
B	16	mm	Width
r (min.)	1	mm	Chamfer dimension

Basic Load Ratings

Cr	23200	N	Basic dynamic load rating
C0r	16300	N	Basic static load rating

Speeds

Grease	10000	min-1	Grease lubrication
Oil (Oil-bath)	12000	min-1	Oil-bath lubrication

Abutment and Fillet Dimensions

da (min.)	35	mm	Diameter of shaft abutment
Da (max.)	57	mm	Diameter of housing abutment
db (max.)	38.5	mm	Diameter of shaft abutment
ra (max.)	1	mm	Radius of shaft or housing fillet

Mass

Mass approx.

0.215

Mass approx.

CAD

FAQs (3)

Customer Questions

What are radial loads and axial loads?

Loads are defined by their direction. Loads perpendicular to the shaft are called radial loads and loads parallel to the shaft are called axial (thrust) loads.

How do deep groove ball bearings (DGBBs) differ from single-row angular contact ball bearings?

While DGBBs can handle axial loads in both directions, single-row angular contact ball bearings can only receive axial load in one direction.

What are the differences between open, sealed, and shielded deep groove ball bearings?

Seals and shields offer additional protection for bearing components and help to improve and maintain lubrication. In terms of sealing performance, sealed bearings rank best, followed by shielded bearings, then finally open bearings.
NSK uses supplementary designations D, DU, DW, and V (DD, DDU, DDW, VV) for sealed bearings and Z (ZZ) for shielded bearings. No supplementary designations are listed for open bearings.

More Information

More Information
NSK Product Type2	DGBB_MT
NSK Product Type	Bearing

Maximum-Type Ball Bearings
