6308NR

Single-Row Deep Groove Ball Bearings, With a Snap Ring

6308NR

Single-Row Deep Groove Ball Bearings, With a Snap Ring

Skip to the beginning of the images gallery

Images shown are representations. Designs and specifications may differ from actual products.

Parts Number
6308NRC3

Product Information

Display units Metric Imperial

Parts Number

6308NRC3

Boundary Dimensions

d	40	mm	Bore diameter
D	90	mm	Outside diameter
B	23	mm	Width
r (min.)	1.5	mm	Chamfer dimension

Basic Load Ratings

Cr	45000	N	Basic dynamic load rating
C0r	24000	N	Basic static load rating

Speeds

Grease	9000	min-1	Grease lubrication
Oil (Oil-bath)	11000	min-1	Oil-bath lubrication

Dimensions

D2 (max.)	96.5	mm	Outside diameter of snap ring
f (max.)	2.46	mm	Width of snap ring
a (min.)	3.28	mm	Distance outer ring from side face to snap ring groove
b (min.)	2.7	mm	Width of snap ring groove
D1 (max.)	86.79	mm	Diameter of snap ring groove
ro (max.)	0.6	mm	Bottom radius of snap ring groove
rN	0.5	mm	Chamfer dimension

Abutment and Fillet Dimensions

da (min.)	48	mm	Diameter of shaft abutment
da (max.)	53	mm	Diameter of shaft abutment
Da (max.)	82	mm	Diameter of housing abutment
ra (max.)	1.5	mm	Radius of shaft or housing fillet
Dx (min.)	98	mm	Diameter of snap ring recess in the housing
Cy (max.)	5.4	mm	Distance from outer ring side face to snap ring back face

Calculation factors

13.2

Factor

Additional information

z	8		Number of Balls
Dw	15.081	mm	Ball Diameter

Mass

Mass approx.

0.636

Mass approx.

CAD

FAQs (3)

Customer Questions

What are radial loads and axial loads?

Loads are defined by their direction. Loads perpendicular to the shaft are called radial loads and loads parallel to the shaft are called axial (thrust) loads.

How do deep groove ball bearings (DGBBs) differ from single-row angular contact ball bearings?

While DGBBs can handle axial loads in both directions, single-row angular contact ball bearings can only receive axial load in one direction.

What are the differences between open, sealed, and shielded deep groove ball bearings?

Seals and shields offer additional protection for bearing components and help to improve and maintain lubrication. In terms of sealing performance, sealed bearings rank best, followed by shielded bearings, then finally open bearings.
NSK uses supplementary designations D, DU, DW, and V (DD, DDU, DDW, VV) for sealed bearings and Z (ZZ) for shielded bearings. No supplementary designations are listed for open bearings.

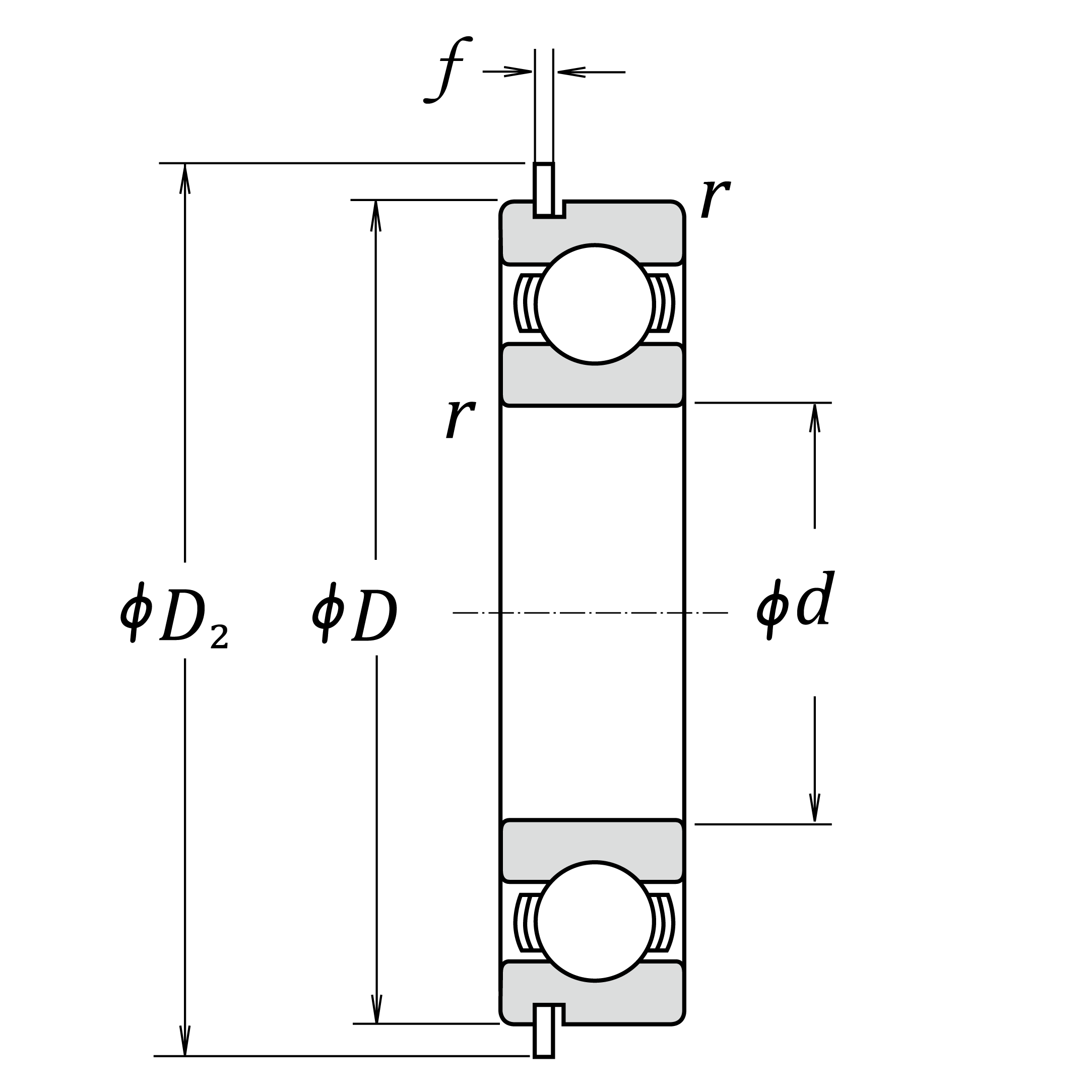

Drawing for Reference

Designations	Basic Load Ratings		Radial Internal Clearance			Tolerance Class	Limiting Speeds		Number of Balls	Ball Diameter		Mass
Designations	Cr (N)	C0r (N)		min	max	Tolerance Class	Grease (min-1)	Oil (Oil-bath) (min-1)	Number of Balls	(mm)	(inch)	(kg)
6308NR	45000	24000				P0	9000	11000	8	15.081	0.594	0.636

Not to scale.
(*) The chamfer dimensions are minimum values.
6000N, 6000NR, 6001N, 6001NR : Snap ring groove dimensions and snap ring dimensions are not based on ISO 15.
