53202U

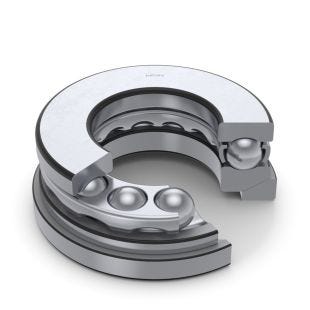

Single-Direction Thrust Ball Bearings

53202U

Images shown are representations. Designs and specifications may differ from actual products.

Grouped product items
Parts Number
53202U

Display units Metric Imperial

53202U

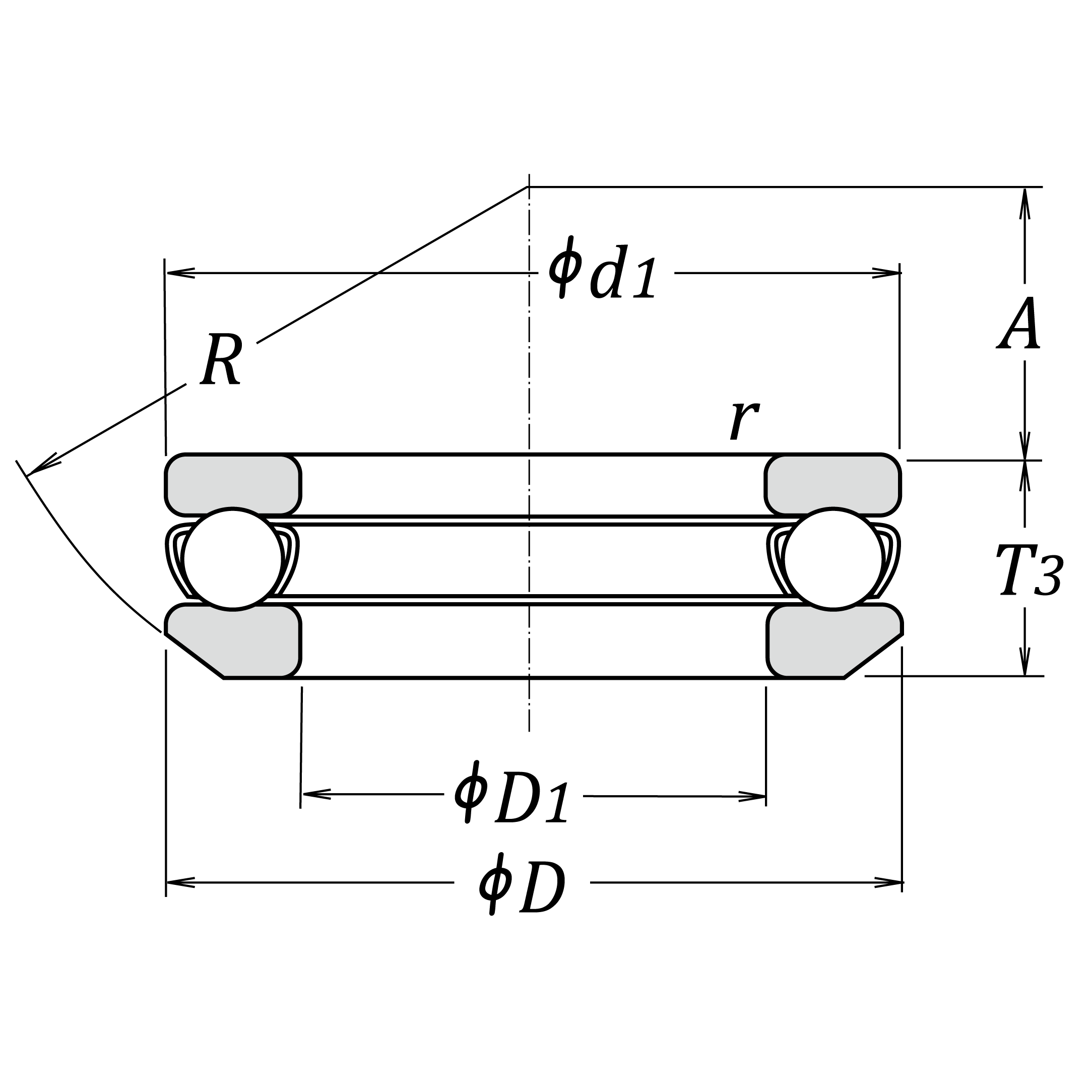

d	15	mm	Bore diameter
D	32	mm	Outside diameter
T,T3	13.3	mm	Height

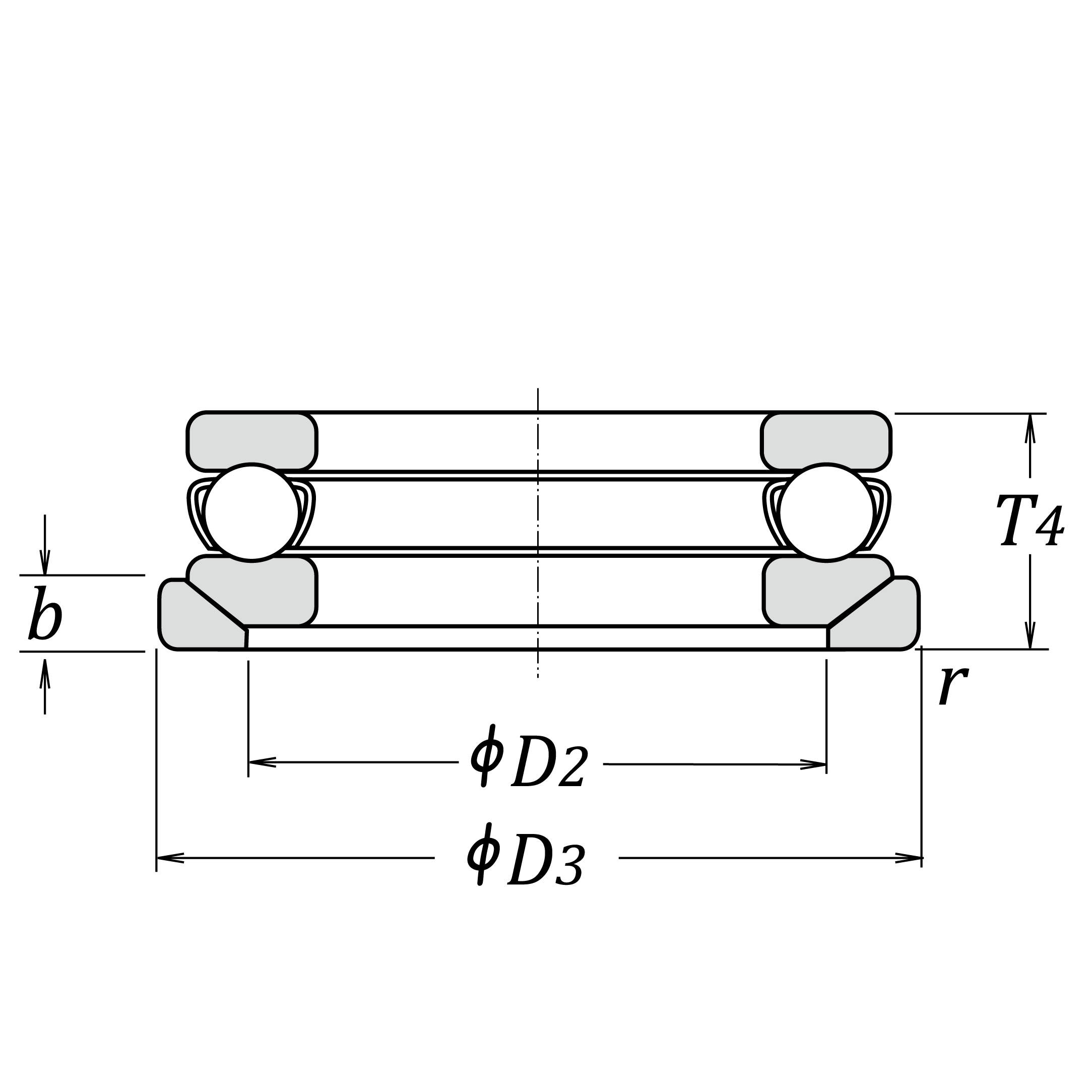

T4	15	mm	Height bearing include seat washer
r (min.)	0.6	mm	Chamfer dimension

Ca	16700	N	Basic dynamic load rating
C0a	24800	N	Basic static load rating

Grease	5000	min-1	Grease lubrication
Oil (Oil-bath)	7500	min-1	Oil-bath lubrication

A	12	mm	Centre height housing washer sphere
R	28	mm	Radius sphered housing washer
b	4	mm	Height sphered housing washer
D2	24	mm	Inner diameter sphered seat washer
d1	32	mm	Outside diameter shaft washer
D3	35	mm	Outside diameter sphered housing washer
D1	17	mm	Inner diameter housing washer

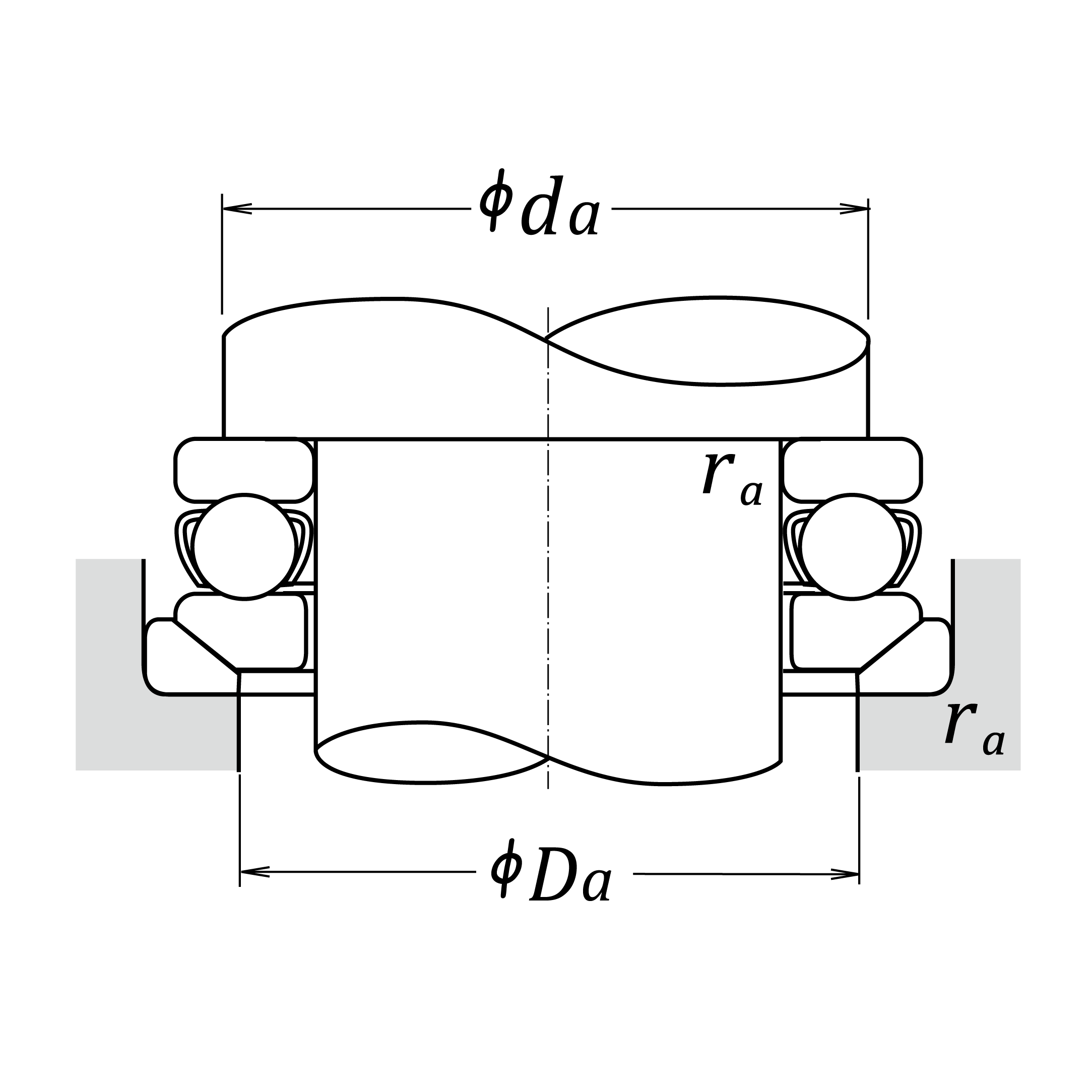

da (min.)	25	mm	Diameter of shaft abutment
Da (max.)	22	mm	Diameter of housing abutment
ra (max.)	0.6	mm	Radius of shaft or housing fillet

Mass approx.

0.059

Mass approx.

CAD

Customer Questions

How are axial load and thrust load different?

Axial load and thrust load are different words for the same concept: They both refer to loads parallel to the axis of the shaft.

Can thrust ball bearings take radial loads?

No, thrust ball bearings cannot take radial loads.
