N206W

Single-Row Cylindrical Roller Bearings

N206W

Single-Row Cylindrical Roller Bearings

Skip to the beginning of the images gallery

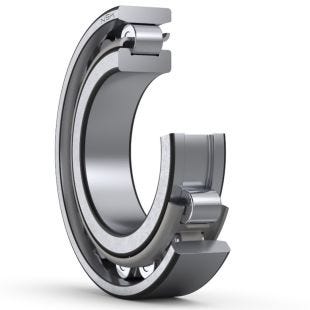

Images shown are representations. Designs and specifications may differ from actual products.

Parts Number
N206W

Product Information

Display units Metric Imperial

Parts Number

N206W

Boundary Dimensions

d	30	mm	Bore diameter
D	62	mm	Outside diameter
B	16	mm	Width
EW	53.5	mm	Raceway diameter of outer ring
r (min.)	1	mm	Chamfer dimension
r1 (min.)	0.6	mm	Chamfer dimension

Basic Load Ratings

Cr	30500	N	Basic dynamic load rating
C0r	23300	N	Basic static load rating

Speeds

Thermal Speed Rating (Oil-bath)	13000	min-1	Oil-bath lubrication subject to conditions outlined in ISO 15312
Grease	8500	min-1	Grease lubrication
Oil (Oil-bath)	10000	min-1	Oil-bath lubrication

Abutment and Fillet Dimensions

da (min.)	35	mm	Diameter of shaft abutment
Db (min.)	56	mm	Diameter of housing abutment
Db (max.)	58	mm	Diameter of housing abutment
ra (max.)	1	mm	Radius of shaft or housing fillet
rb (max.)	0.6	mm	Radius of shaft or housing fillet

Mass

Mass approx.

0.208

Mass approx.

CAD

FAQs (3)

Customer Questions

How do ball bearings and roller bearings differ?

Ball bearings are ideal for high-speed rotation, while roller bearings are more suited for high loads.

Do cylindrical roller bearings come with seals?

Because cylindrical roller bearings have separable inner and outer rings, they generally come in an open specification without seals.
As such, please apply seals or other protection around the equipment mounting.

How are the EW, EM, and ET Series different?

EW Series bearings are small and utilize pressed cages, making them suitable for standard operating conditions.
ET Series bearings use polyamide-resin cages suited for high temperatures.
Finally, EM Series bearings have machined brass cages for use in harsh applications such as gearboxes and vibrating machinery or in environments where the bearing must be quiet, such as in mid-to-large size motors.
