NJ1022

Single-Row Cylindrical Roller Bearings

NJ1022

Single-Row Cylindrical Roller Bearings

Skip to the beginning of the images gallery

Parts Number
NJ1022

Product Information

Display units Metric Imperial

Parts Number

NJ1022

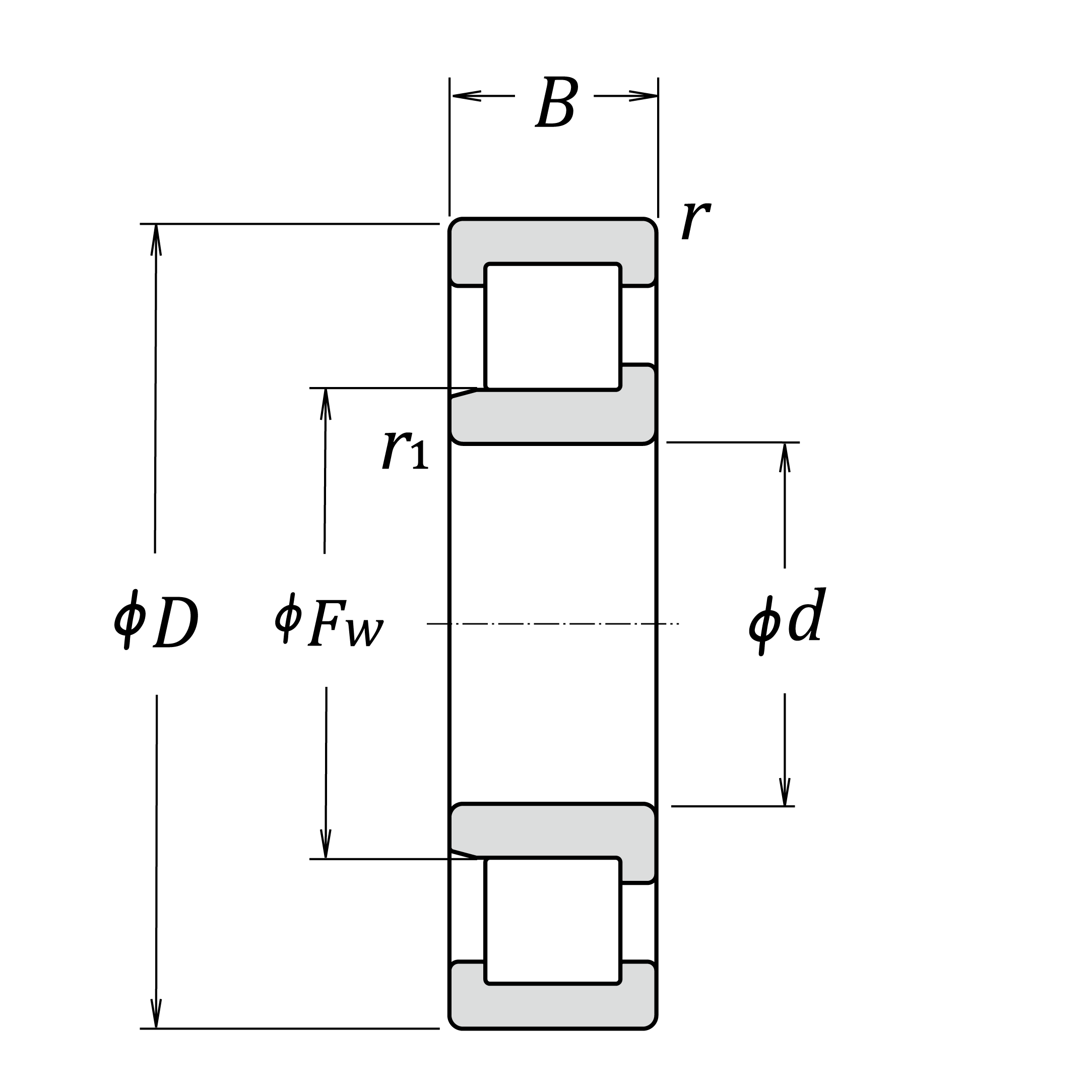

Boundary Dimensions

d	110	mm	Bore diameter
D	170	mm	Outside diameter
B	28	mm	Width
FW	125	mm	Raceway diameter of inner ring
r (min.)	2	mm	Chamfer dimension
r1 (min.)	1.1	mm	Chamfer dimension

Basic Load Ratings

Cr	161000	N	Basic dynamic load rating
C0r	174000	N	Basic static load rating

Speeds

Thermal Speed Rating (Oil-bath)	4500	min-1	Oil-bath lubrication subject to conditions outlined in ISO 15312
Grease	3800	min-1	Grease lubrication
Oil (Oil-bath)	4500	min-1	Oil-bath lubrication

Abutment and Fillet Dimensions

da (min.)	119	mm	Diameter of shaft abutment
db (min.)	116.5	mm	Diameter of shaft / spacer sleeve abutment
db (max.)	123	mm	Diameter of shaft / spacer sleeve abutment
dc (min.)	128	mm	Diameter of shaft abutment
Da (max.)	161	mm	Diameter of housing abutment
ra (max.)	2	mm	Radius of shaft or housing fillet
rb (max.)	1	mm	Radius of shaft or housing fillet

Mass

Mass approx.

2.33

Mass approx.

CAD

FAQs (3)

Customer Questions

How do ball bearings and roller bearings differ?

Ball bearings are ideal for high-speed rotation, while roller bearings are more suited for high loads.

Do cylindrical roller bearings come with seals?

Because cylindrical roller bearings have separable inner and outer rings, they generally come in an open specification without seals.
As such, please apply seals or other protection around the equipment mounting.

How are the EW, EM, and ET Series different?

EW Series bearings are small and utilize pressed cages, making them suitable for standard operating conditions.
ET Series bearings use polyamide-resin cages suited for high temperatures.
Finally, EM Series bearings have machined brass cages for use in harsh applications such as gearboxes and vibrating machinery or in environments where the bearing must be quiet, such as in mid-to-large size motors.

More Information

More Information
NSK Product Type2	CRB_SR
NSK Product Type	Bearing
