21307CDE4

Spherical Roller Bearings

21307CDE4

Spherical Roller Bearings

main product photo
Images shown are representations. Designs and specifications may differ from actual products.
Grouped product items
Parts Number
21307CDE4
21307CDE4C3
21307CDE4C2
21307CDE4C4
21307CDE4C5
Display units

Designations

21307CDE4

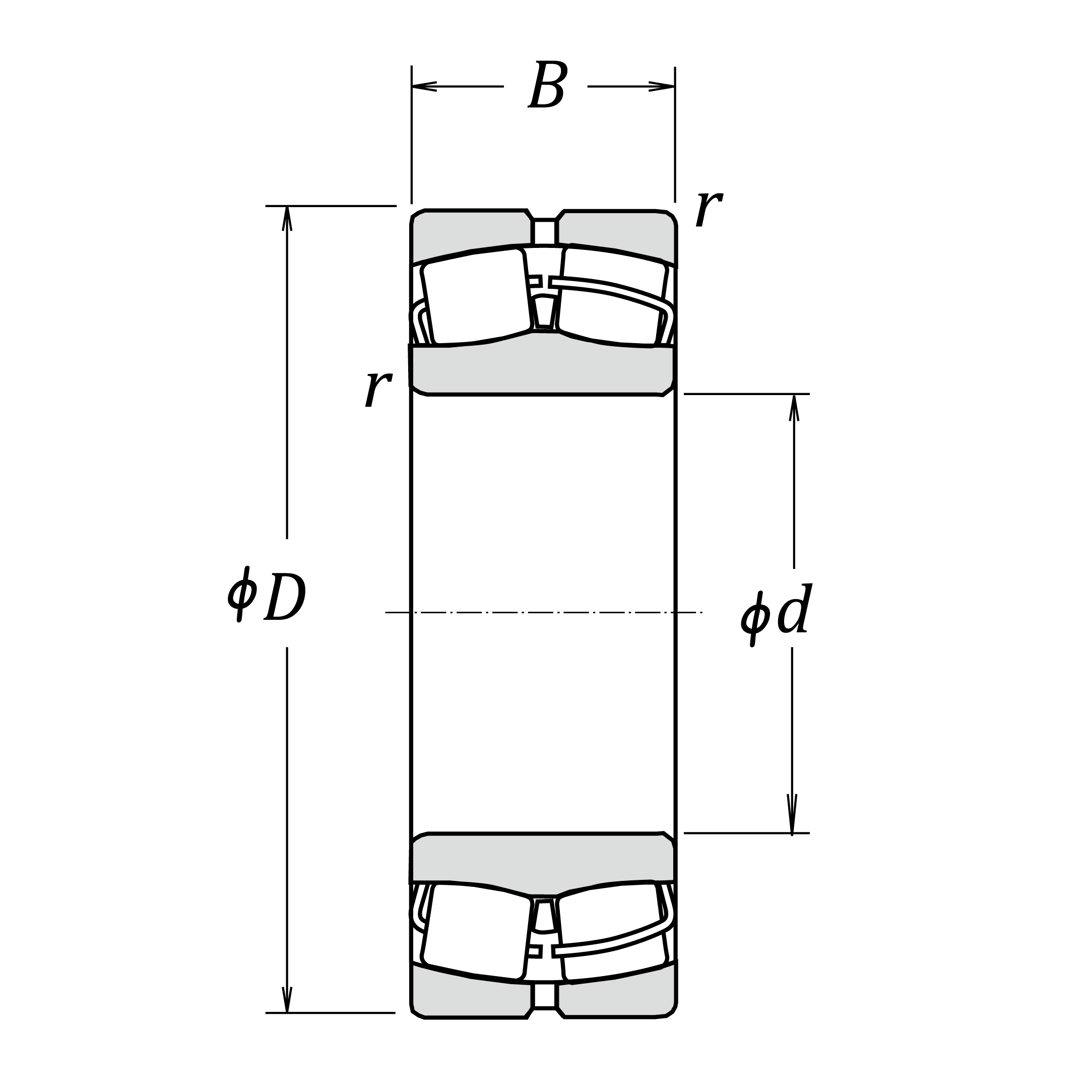

Boundary Dimensions

d 35 mm Bore diameter
D 80 mm Outside diameter
B 21 mm Width
r (min.) 1.5 mm Chamfer dimension

Basic Load Ratings

Cr 71500 N Basic dynamic load rating
C0r 76000 N Basic static load rating

Speeds

Thermal Speed Rating (Oil-bath) 7100 min-1 Oil-bath lubrication subject to conditions outlined in ISO 15312
Grease 4000 min-1 Grease lubrication
Oil (Oil-bath) 5300 min-1 Oil-bath lubrication

Abutment and Fillet Dimensions

da (min.) 44 mm Diameter of shaft abutment
da (max.) 47 mm Diameter of shaft abutment
Da (min.) 67 mm Diameter of housing abutment
Da (max.) 71 mm Diameter of housing abutment
ra (max.) 1.5 mm Radius of shaft or housing fillet

Calculation factors

e 0.28 Constant
Y2 3.6 Axial load Factors
Y3 2.4 Axial load Factors
Y0 2.4 Axial load Factors

Mass

Mass approx. 0.53 kg Mass approx.
CAD
Designations Boundary Dimensions Basic Load Ratings Radial Internal Clearance Tolerance Class Speeds Mass
Limiting Speeds
d
(mm)		 D
(mm)		 B
(mm)		 Cr
(N)		 C0r
(N)		 min
 max
 Thermal Speed Rating (Oil-bath)
(min-1)		 Mechanical (forced-circulation oil)
(min-1)		 Grease
(min-1)		 Oil (Oil-bath)
(min-1)		 (kg)
21307CDE4 35 80 21 71500 76000 7100 4000 5300 0.53

Not to scale.
(*) The chamfer dimensions are minimum values.
Suffix K and K30 represents bearings with tapered bores (taper 1:12 or 1:30).

More Information
NSK Product Type2 SRB_CTB
NSK Product Type Bearing
