22208EAE4

Spherical Roller Bearings

22208EAE4

Spherical Roller Bearings

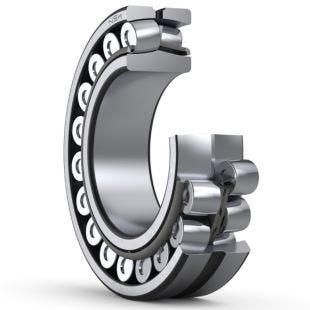

main product photo
Images shown are representations. Designs and specifications may differ from actual products.
Grouped product items
Parts Number
22208EAE4
22208EAE4C3
22208EAE4C2
22208EAE4C4
22208EAE4C5
Display units

Designations

22208EAE4

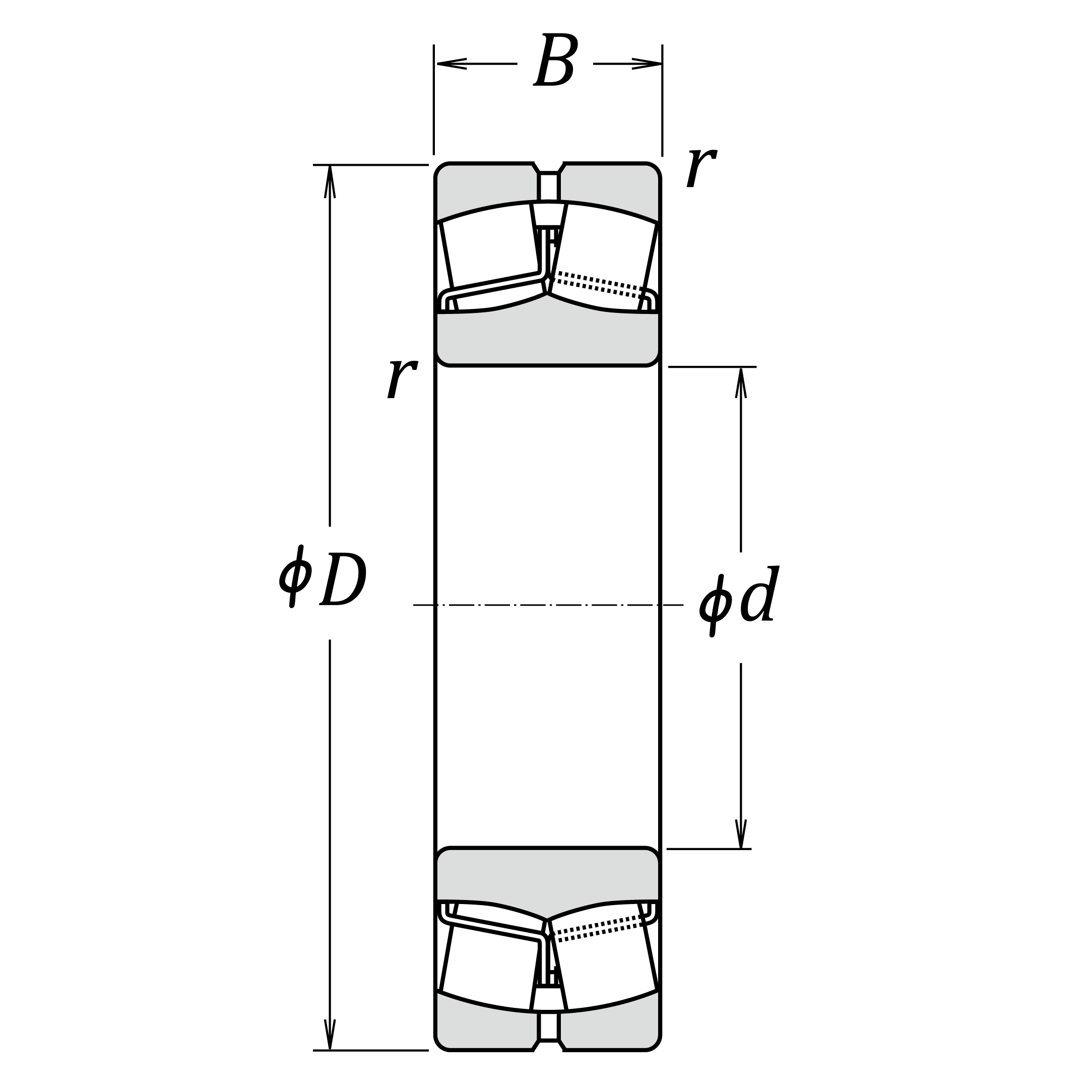

Boundary Dimensions

d 40 mm Bore diameter
D 80 mm Outside diameter
B 23 mm Width
r (min.) 1.1 mm Chamfer dimension

Basic Load Ratings

Cr 113000 N Basic dynamic load rating
C0r 99500 N Basic static load rating

Speeds

Thermal Speed Rating (Oil-bath) 7100 min-1 Oil-bath lubrication subject to conditions outlined in ISO 15312
Mechanical (forced-circulation oil) 12000 min-1 Properly designed and controlled forced-circulation oil lubrication
Grease 6700 min-1 Grease lubrication
Oil (Oil-bath) 8500 min-1 Oil-bath lubrication

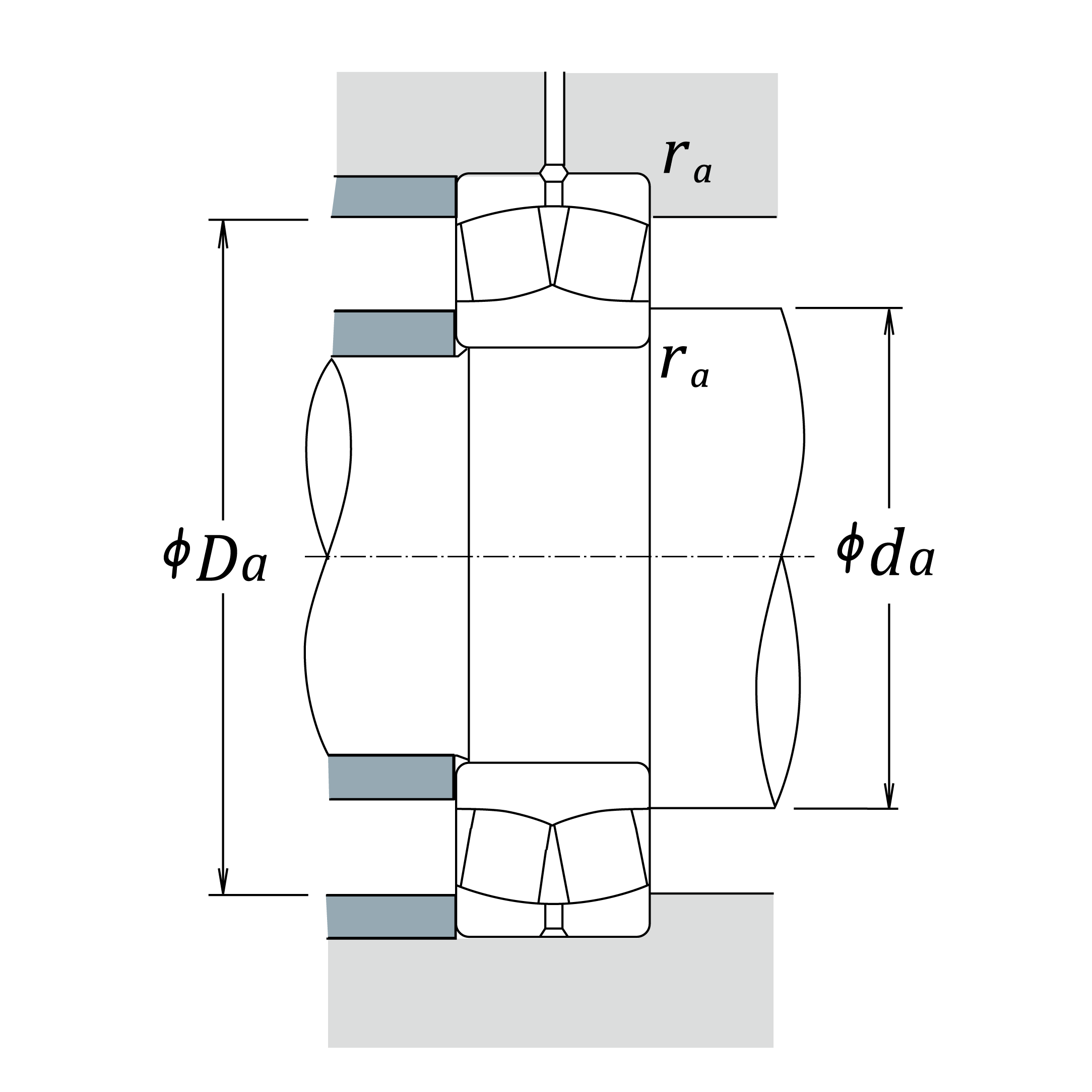

Abutment and Fillet Dimensions

da (min.) 47 mm Diameter of shaft abutment
da (max.) 49 mm Diameter of shaft abutment
Da (min.) 70 mm Diameter of housing abutment
Da (max.) 73 mm Diameter of housing abutment
ra (max.) 1 mm Radius of shaft or housing fillet

Calculation factors

e 0.28 Constant
Y2 3.6 Axial load Factors
Y3 2.4 Axial load Factors
Y0 2.4 Axial load Factors

Mass

Mass approx. 0.5 kg Mass approx.
CAD
Designations Boundary Dimensions Basic Load Ratings Radial Internal Clearance Tolerance Class Speeds Mass
Limiting Speeds
d
(mm)		 D
(mm)		 B
(mm)		 Cr
(N)		 C0r
(N)		 min
 max
 Thermal Speed Rating (Oil-bath)
(min-1)		 Mechanical (forced-circulation oil)
(min-1)		 Grease
(min-1)		 Oil (Oil-bath)
(min-1)		 (kg)
22208EAE4 40 80 23 113000 99500 7100 12000 6700 8500 0.5

Not to scale.
(*) The chamfer dimensions are minimum values.
Suffix K and K30 represents bearings with tapered bores (taper 1:12 or 1:30).

More Information
NSK Product Type2 SRB_CTB
