BSF1560

Double-Row Bearings (BSBD Series)

BSF1560

Double-Row Bearings (BSBD Series)

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

Grouped product items
Parts Number
BSF1560DDUHP2B

Product Information

Designations

BSF1560

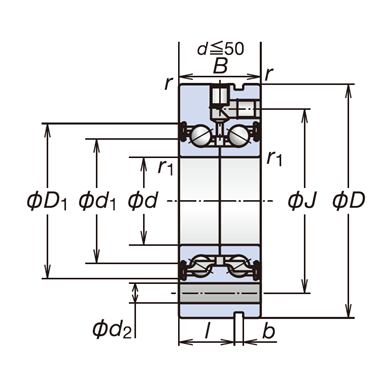

Boundary Dimensions

d	15	mm	Bore diameter
D	60	mm	Outside diameter
B	25	mm	Width
r(min.)	0.6	mm	Chamfer Dimension
r1(min.)	0.3	mm	Chamfer Dimension

Basic Load Ratings

Ca	23.3	kN	Basic Dynamic Load Rating
C0a	26.9	kN	Basic Static Load Rating

Speeds

Grease

7100

min-1

Limiting Speed

Dimensions

	60°		Contact Angle
d1	26.7	mm	Shoulder Diameter
D1	35.7	mm	Shoulder/Recess Diameter

Performance

19.4

kN

Limiting Static Axial Load

Additional information

T	4050	N	Recommended Clamping Force
	0.034	N・m	Starting Torque
A	400	N/μm	Axial Rigidity
H	675	N	Preload
b	3	mm	Extraction groove position
l	17	mm	Extraction groove position
d2	6.8	mm	Through Hole for Attachment Bolts

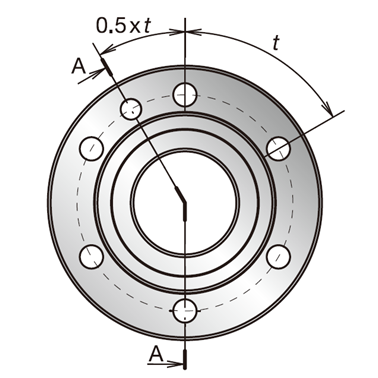

J	46	mm	Pitch Diameter of Holes for Bolts
t	3 x 120°	mm	Number of bolts × Pitch

Mounting Bolts

	Ⅱ		Bolt Type
	M6		Mounting Bolts Diameter
	3		Number of Mounting Bolts

Mass

0.44

kg

Mass(approx.)

CAD

Customer Questions

More Information

More Information
NSK Product Type2	SP_BSBD_SR_BSF
NSK Product Type	Super Precision Bearing
